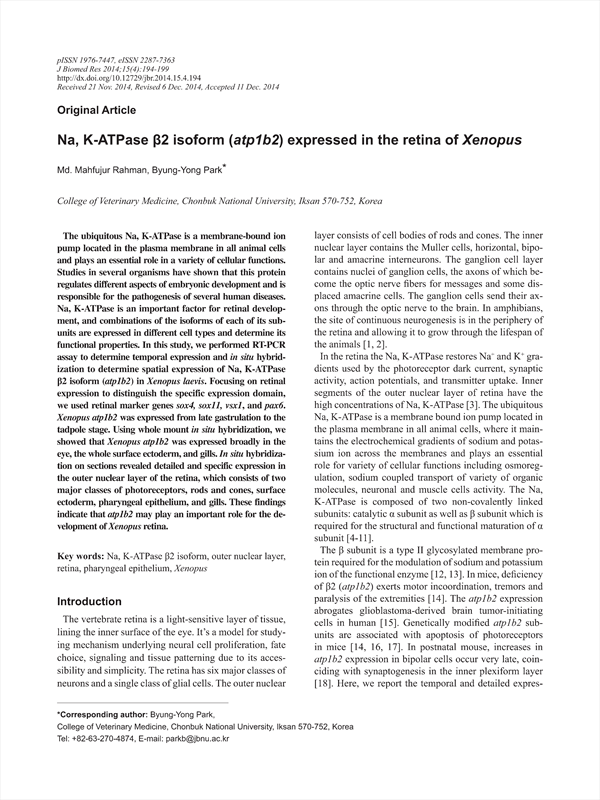

The ubiquitous Na, K-ATPase is a membrane-bound ion pump located in the plasma membrane in all animal cells and plays an essential role in a variety of cellular functions. Studies in several organisms have shown that this protein regulates different aspects of embryonic development and is responsible for the pathogenesis of several human diseases. Na, K-ATPase is an important factor for retinal development, and combinations of the isoforms of each of its subunits are expressed in different cell types and determine its functional properties. In this study, we performed RT-PCR assay to determine temporal expression and in situ hybridization to determine spatial expression of Na, K-ATPase β2 isoform (atp1b2) in Xenopus laevis. Focusing on retinal expression to distinguish the specific expression domain, we used retinal marker genes sox4, sox11, vsx1, and pax6. Xenopus atp1b2 was expressed from late gastrulation to the tadpole stage. Using whole mount in situ hybridization, we showed that Xenopus atp1b2 was expressed broadly in the eye, the whole surface ectoderm, and gills. In situ hybridization on sections revealed detailed and specific expression in the outer nuclear layer of the retina, which consists of two major classes of photoreceptors, rods and cones, surface ectoderm, pharyngeal epithelium, and gills. These findings indicate that atp1b2 may play an important role for the development of Xenopus retina.

Introduction
 Materials and Methods
  Xenopus laevis Husbandry
  Reverse Transcriptase Polymerase Chain Reaction
  In situ hybridizations
  Histological analysis
 Results
  Temporal expression analysis
  Spatial expression analysis
  Na, K ATPase β2 subunit expression in the retina of eye
 Discussion
 Acknowledgements
 ORCID
 References

• Byung-Yong Park(College of Veterinary Medicine, Chonbuk National University, Iksan 570-752, Korea) Corresponding author
