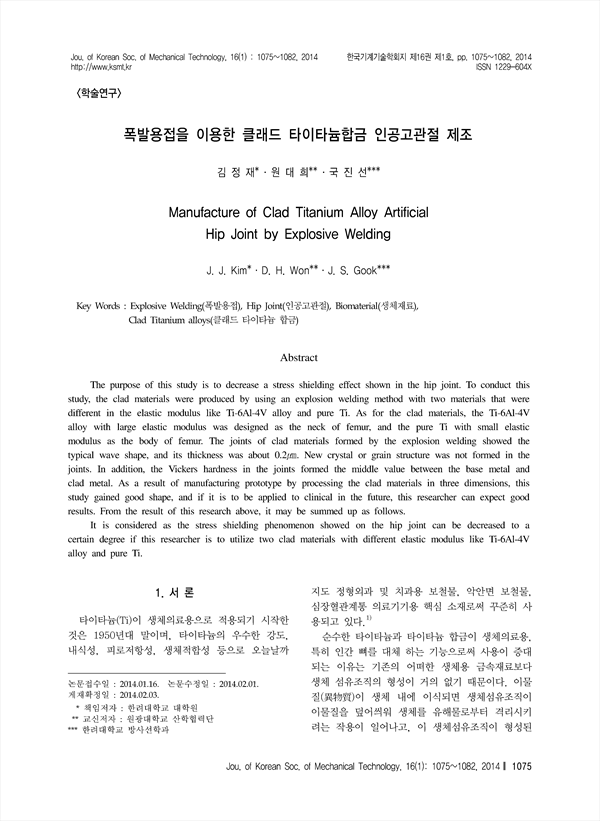

The purpose of this study is to decrease a stress shielding effect shown in the hip joint. To conduct this study, the clad materials were produced by using an explosion welding method with two materials that were different in the elastic modulus like Ti-6Al-4V alloy and pure Ti. As for the clad materials, the Ti-6Al-4V alloy with large elastic modulus was designed as the neck of femur, and the pure Ti with small elastic modulus as the body of femur. The joints of clad materials formed by the explosion welding showed the typical wave shape, and its thickness was about 0.2㎛. New crystal or grain structure was not formed in the joints. In addition, the Vickers hardness in the joints formed the middle value between the base metal and clad metal. As a result of manufacturing prototype by processing the clad materials in three dimensions, this study gained good shape, and if it is to be applied to clinical in the future, this researcher can expect good results. From the result of this research above, it may be summed up as follows. It is considered as the stress shielding phenomenon showed on the hip joint can be decreased to a certain degree if this researcher is to utilize two clad materials with different elastic modulus like Ti-6Al-4V alloy and pure Ti

Abstract
 1. 서론
 2. 실험방법 및 내용
  2.1 시편준비
  2.2 용접부 경도 측정
  2.3 용접부의 광학현미경 관찰
  2.4 SEM 관찰 및 EDX 측정
  2.5 접합계면부의 XRD 측정
 3. 실험결과
  3.1 폭발 용접
  3.2 인공 고관절 설계 및 가공
  3.3 접합부의 계면 관찰
  3.4 접합부의 경도분포
  3.5 SEM 및 EDX 분석
  3.6 XRD 분석
 4. 고찰
 5. 결론
 References

• 김정재(한려대학교 대학원) | J. J. Kim
• 원대희(원광대학교 산학협력단) | D. H. Won Corresponding Author
• 국진선(한려대학교 방사선학과) | J. S. Gook
