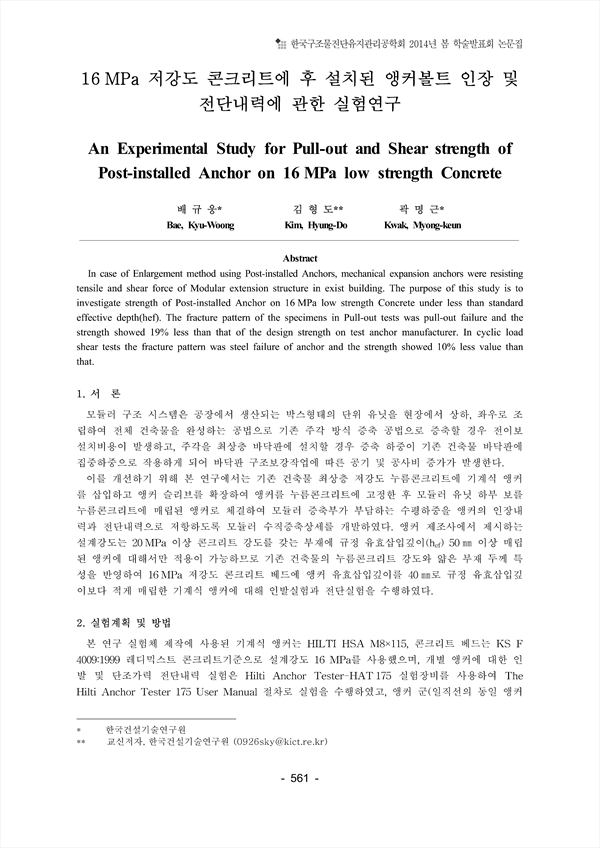

16 MPa 저강도 콘크리트에 후 설치된 앵커볼트 인장 및 전단내력에 관한 실험연구

An Experimental Study for Pull-out and Shear strength of Post-installed Anchor on 16 MPa low strength Concrete

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/293433
서비스가 종료되어 열람이 제한될 수 있습니다.
한국구조물진단유지관리공학회 (The Korea Institute For Structural Maintenance and Inspection)
초록

In case of Enlargement method using Post-installed Anchors, mechanical expansion anchors were resisting tensile and shear force of Modular extension structure in exist building. The purpose of this study is to investigate strength of Post-installed Anchor on 16 MPa low strength Concrete under less than standard effective depth(hef). The fracture pattern of the specimens in Pull-out tests was pull-out failure and the strength showed 19% less than that of the design strength on test anchor manufacturer. In cyclic load shear tests the fracture pattern was steel failure of anchor and the strength showed 10% less value than that.

저자
  • 배규웅(한국건설기술연구원) | Bae, Kyu-Woong
  • 김형도(한국건설기술연구원) | Kim, Hyung-Do 교신저자
  • 곽명근(한국건설기술연구원) | Kwak, Myong-keun
