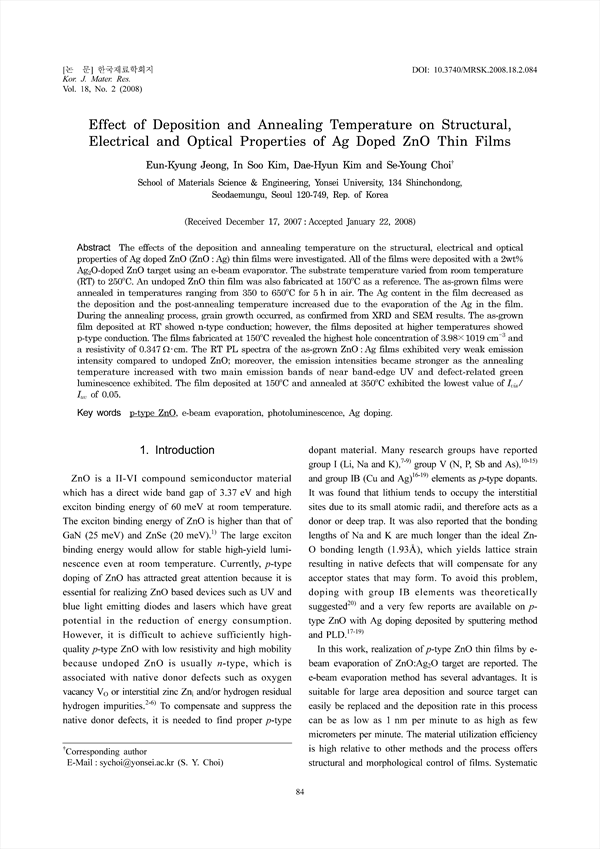

The effects of the deposition and annealing temperature on the structural, electrical and opticalproperties of Ag doped ZnO (ZnO:Ag) thin films were investigated. All of the films were deposited with a 2wt%Ag2O-doped ZnO target using an e-beam evaporator. The substrate temperature varied from room temperature(RT) to 250oC. An undoped ZnO thin film was also fabricated at 150oC as a reference. The as-grown films wereannealed in temperatures ranging from 350 to 650oC for 5h in air. The Ag content in the film decreased asthe deposition and the post-annealing temperature increased due to the evaporation of the Ag in the film.During the annealing process, grain growth occurred, as confirmed from XRD and SEM results. The as-grownfilm deposited at RT showed n-type conduction; however, the films deposited at higher temperatures showedp-type conduction. The films fabricated at 150oC revealed the highest hole concentration of 3.98×1019cm-3 anda resistivity of 0.347Ω·cm. The RT PL spectra of the as-grown ZnO:Ag films exhibited very weak emissionintensity compared to undoped ZnO; moreover, the emission intensities became stronger as the annealingtemperature increased with two main emission bands of near band-edge UV and defect-related greenluminescence exhibited. The film deposited at 150oC and annealed at 350oC exhibited the lowest value of Ivis/Iuv of 0.05.

• Jeong, Eun-Kyung
• Kim, In-Soo | Kim, In-Soo
• Kim, Dae-Hyun | Kim, Dae-Hyun
• Choi, Se-Young | Choi, Se-Young
