논문 상세보기
pp.617-622

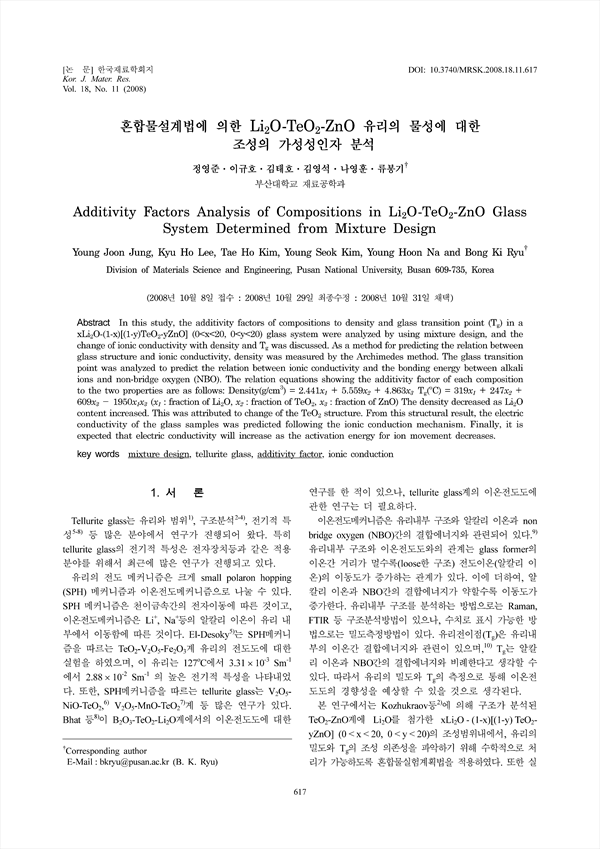

In this study, the additivity factors of compositions to density and glass transition point (Tg) in a xLi2O-(1-x)[(1-y)TeO2-yZnO] (0<x<20, 0<y<20) glass system were analyzed by using mixture design, and the change of ionic conductivity with density and Tg was discussed. As a method for predicting the relation between glass structure and ionic conductivity, density was measured by the Archimedes method. The glass transition point was analyzed to predict the relation between ionic conductivity and the bonding energy between alkali ions and non-bridge oxygen (NBO). The relation equations showing the additivity factor of each composition to the two properties are as follows: Density(g/cm3) = 2.441x1 ＋ 5.559x2 ＋ 4.863x3 Tg(˚C) = 319x1 ＋ 247x2 ＋ 609x3 － 1950x1x3 (x1 : fraction of Li2O, x2 : fraction of TeO2, x3 : fraction of ZnO) The density decreased as Li2O content increased. This was attributed to change of the TeO2 structure. From this structural result, the electric conductivity of the glass samples was predicted following the ionic conduction mechanism. Finally, it is expected that electric conductivity will increase as the activation energy for ion movement decreases.
