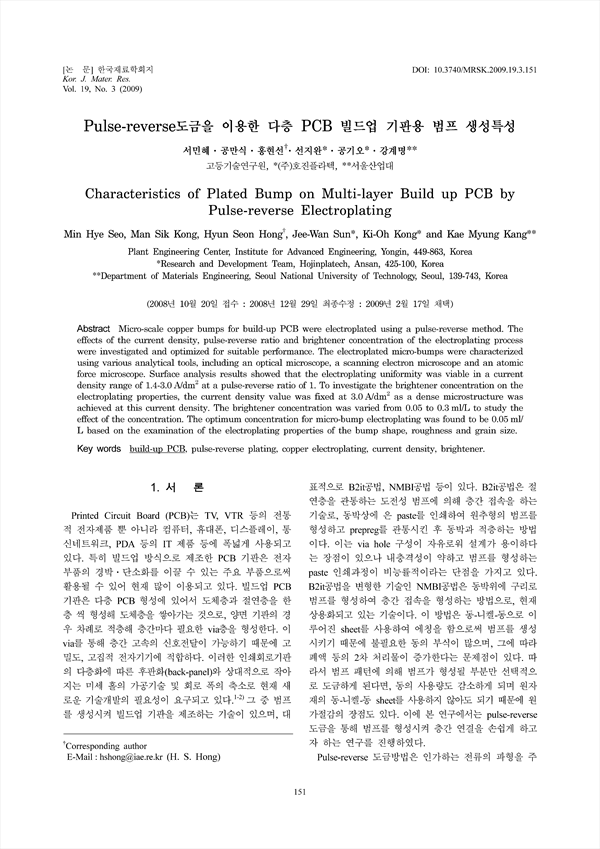

Pulse-reverse도금을 이용한 다층 PCB 빌드업 기판용 범프 생성특성 KCI 등재 SCOPUS

Characteristics of Plated Bump on Multi-layer Build up PCB by Pulse-reverse Electroplating

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/296949
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국재료학회지 (Korean Journal of Materials Research)
한국재료학회 (Materials Research Society Of Korea)
초록

Micro-scale copper bumps for build-up PCB were electroplated using a pulse-reverse method. The effects of the current density, pulse-reverse ratio and brightener concentration of the electroplating process were investigated and optimized for suitable performance. The electroplated micro-bumps were characterized using various analytical tools, including an optical microscope, a scanning electron microscope and an atomic force microscope. Surface analysis results showed that the electroplating uniformity was viable in a current density range of 1.4-3.0 A/dm2 at a pulse-reverse ratio of 1. To investigate the brightener concentration on the electroplating properties, the current density value was fixed at 3.0 A/dm2 as a dense microstructure was achieved at this current density. The brightener concentration was varied from 0.05 to 0.3 ml/L to study the effect of the concentration. The optimum concentration for micro-bump electroplating was found to be 0.05 ml/L based on the examination of the electroplating properties of the bump shape, roughness and grain size.

저자
  • 서민혜 | Seo, Min-Hye
  • 공만식 | 공만식
  • 홍현선 | 홍현선
  • 선지완 | 선지완
  • 공기오 | 공기오
  • 강계명 | 강계명
