논문 상세보기
pp.459-464

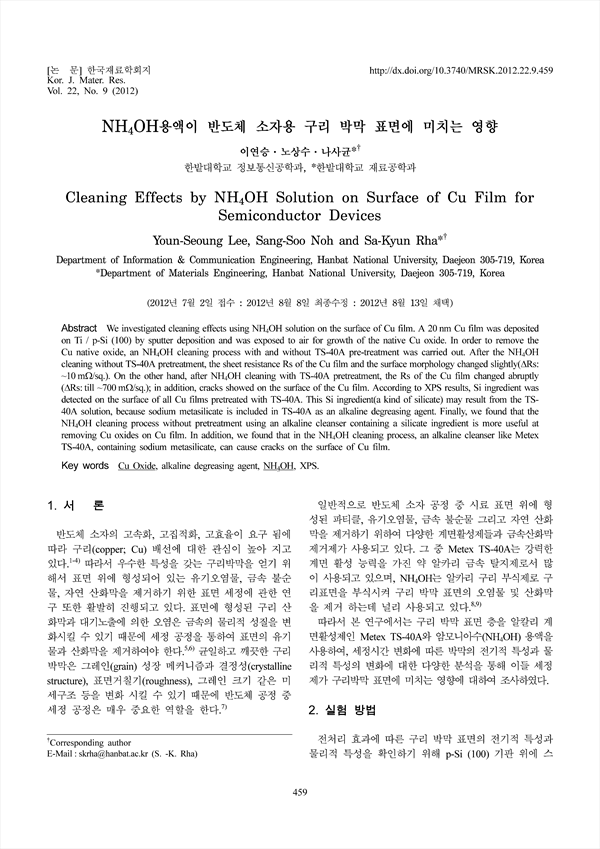

We investigated cleaning effects using NH4OH solution on the surface of Cu film. A 20 nm Cu film was deposited on Ti / p-Si (100) by sputter deposition and was exposed to air for growth of the native Cu oxide. In order to remove the Cu native oxide, an NH4OH cleaning process with and without TS-40A pre-treatment was carried out. After the NH4OH cleaning without TS-40A pretreatment, the sheet resistance Rs of the Cu film and the surface morphology changed slightly(δRs:~10mΩ/sq.). On the other hand, after NH4OH cleaning with TS-40A pretreatment, the Rs of the Cu film changed abruptly (δRs:till~700mΩ/sq.); in addition, cracks showed on the surface of the Cu film. According to XPS results, Si ingredient was detected on the surface of all Cu films pretreated with TS-40A. This Si ingredient(a kind of silicate) may result from the TS-40A solution, because sodium metasilicate is included in TS-40A as an alkaline degreasing agent. Finally, we found that the NH4OH cleaning process without pretreatment using an alkaline cleanser containing a silicate ingredient is more useful at removing Cu oxides on Cu film. In addition, we found that in the NH4OH cleaning process, an alkaline cleanser like Metex TS-40A, containing sodium metasilicate, can cause cracks on the surface of Cu film.
