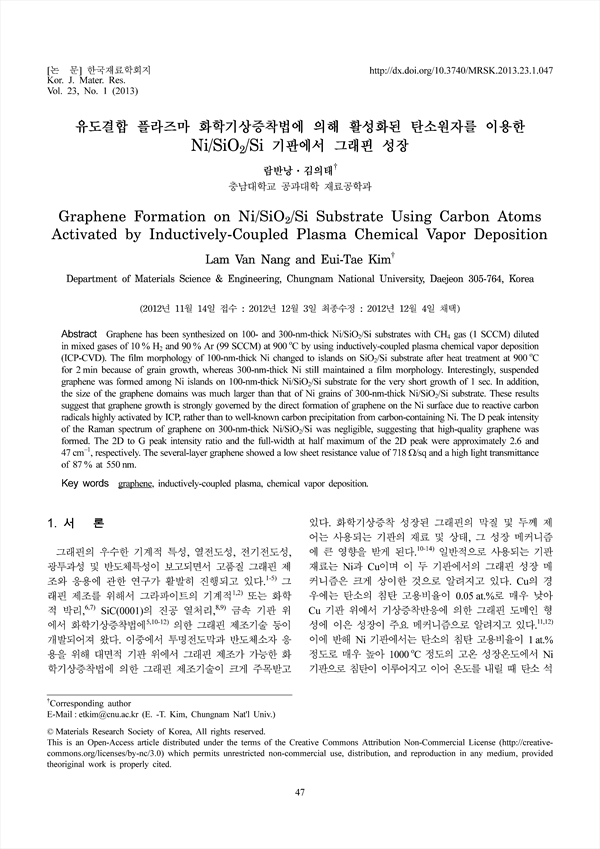

유도결합 플라즈마 화학기상증착법에 의해 활성화된 탄소원자를 이용한 Ni/SiO2/Si 기판에서 그래핀 성장 KCI 등재 SCOPUS

Graphene Formation on Ni/SiO2/Si Substrate Using Carbon Atoms Activated by Inductively-Coupled Plasma Chemical Vapor Deposition

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/297410
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국재료학회지 (Korean Journal of Materials Research)
한국재료학회 (Materials Research Society Of Korea)
초록

Graphene has been synthesized on 100- and 300-nm-thick Ni/SiO2/Si substrates with CH4 gas (1 SCCM) diluted in mixed gases of 10% H2 and 90% Ar (99 SCCM) at 900˚C by using inductively-coupled plasma chemical vapor deposition (ICP-CVD). The film morphology of 100-nm-thick Ni changed to islands on SiO2/Si substrate after heat treatment at 900˚C for 2 min because of grain growth, whereas 300-nm-thick Ni still maintained a film morphology. Interestingly, suspended graphene was formed among Ni islands on 100-nm-thick Ni/SiO2/Si substrate for the very short growth of 1 sec. In addition, the size of the graphene domains was much larger than that of Ni grains of 300-nm-thick Ni/SiO2/Si substrate. These results suggest that graphene growth is strongly governed by the direct formation of graphene on the Ni surface due to reactive carbon radicals highly activated by ICP, rather than to well-known carbon precipitation from carbon-containing Ni. The D peak intensity of the Raman spectrum of graphene on 300-nm-thick Ni/SiO2/Si was negligible, suggesting that high-quality graphene was formed. The 2D to G peak intensity ratio and the full-width at half maximum of the 2D peak were approximately 2.6 and 47cm-1, respectively. The several-layer graphene showed a low sheet resistance value of 718Ω/sq and a high light transmittance of 87% at 550 nm.

저자
  • 람반낭(충남대학교 공과대학 재료공학과) | Nang, Lam Van
  • 김의태( 충남대학교 공과대학 재료공학과) | 김의태
