논문 상세보기
pp.67-71

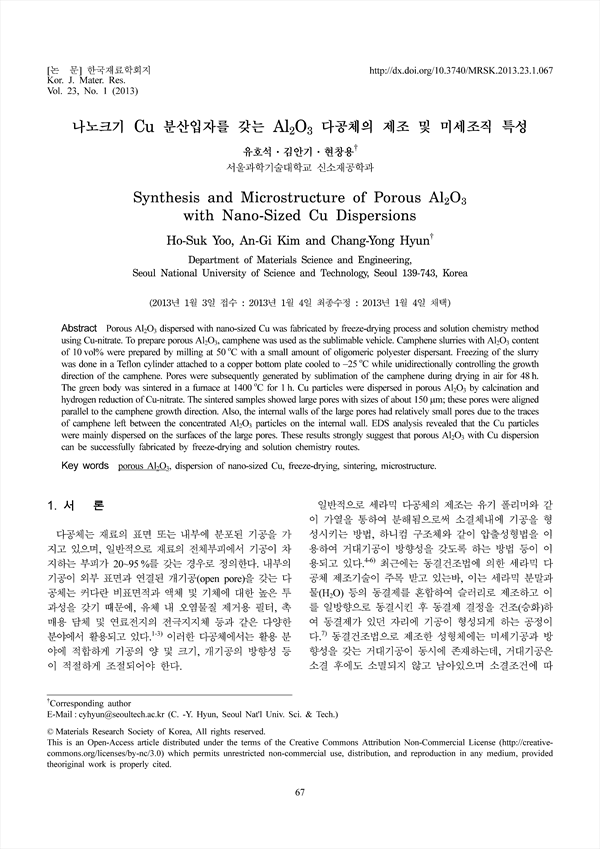

Porous Al2O3 dispersed with nano-sized Cu was fabricated by freeze-drying process and solution chemistry method using Cu-nitrate. To prepare porous Al2O3, camphene was used as the sublimable vehicle. Camphene slurries with Al2O3 content of 10 vol% were prepared by milling at 50˚C with a small amount of oligomeric polyester dispersant. Freezing of the slurry was done in a Teflon cylinder attached to a copper bottom plate cooled to -25˚C while unidirectionally controlling the growth direction of the camphene. Pores were subsequently generated by sublimation of the camphene during drying in air for 48 h. The green body was sintered in a furnace at 1400˚C for 1 h. Cu particles were dispersed in porous Al2O3 by calcination and hydrogen reduction of Cu-nitrate. The sintered samples showed large pores with sizes of about 150μm; these pores were aligned parallel to the camphene growth direction. Also, the internal walls of the large pores had relatively small pores due to the traces of camphene left between the concentrated Al2O3 particles on the internal wall. EDS analysis revealed that the Cu particles were mainly dispersed on the surfaces of the large pores. These results strongly suggest that porous Al2O3 with Cu dispersion can be successfully fabricated by freeze-drying and solution chemistry routes.
