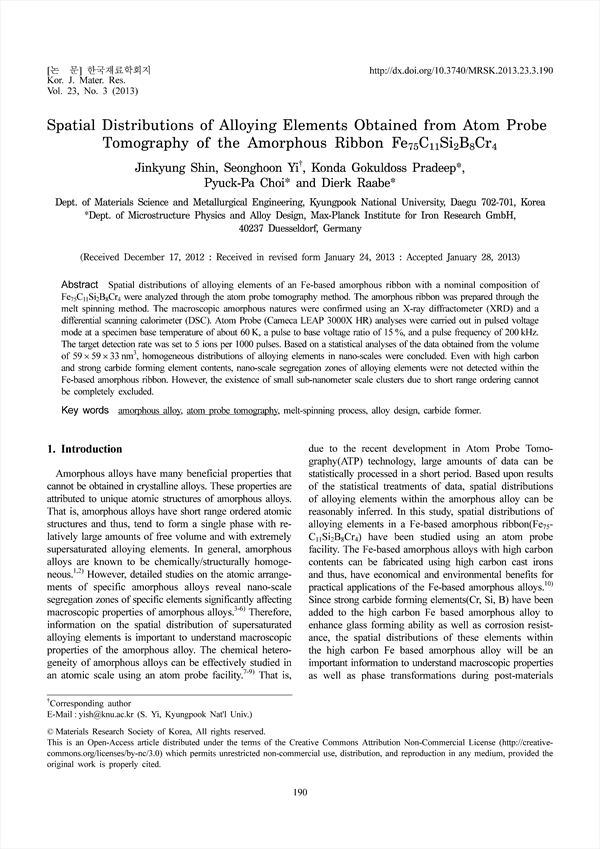

Spatial distributions of alloying elements of an Fe-based amorphous ribbon with a nominal composition of Fe75C11Si2B8Cr4 were analyzed through the atom probe tomography method. The amorphous ribbon was prepared through the melt spinning method. The macroscopic amorphous natures were confirmed using an X-ray diffractometer (XRD) and a differential scanning calorimeter (DSC). Atom Probe (Cameca LEAP 3000X HR) analyses were carried out in pulsed voltage mode at a specimen base temperature of about 60 K, a pulse to base voltage ratio of 15 %, and a pulse frequency of 200 kHz. The target detection rate was set to 5 ions per 1000 pulses. Based on a statistical analyses of the data obtained from the volume of 59×59×33nm3, homogeneous distributions of alloying elements in nano-scales were concluded. Even with high carbon and strong carbide forming element contents, nano-scale segregation zones of alloying elements were not detected within the Fe-based amorphous ribbon. However, the existence of small sub-nanometer scale clusters due to short range ordering cannot be completely excluded.

• Shin, Jinkyung
• Yi, Seonghoon | Yi, Seonghoon
• Pradeep, Konda Gokuldoss | Pradeep, Konda Gokuldoss
• Choi, Pyuck-Pa | Choi, Pyuck-Pa
• Raabe, Dierk | Raabe, Dierk
