논문 상세보기
pp.286-292

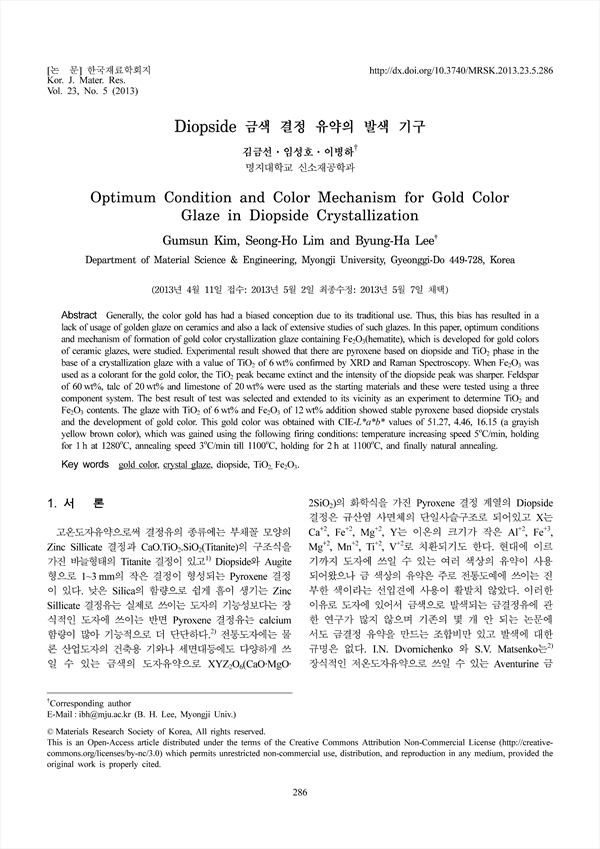

Generally, the color gold has had a biased conception due to its traditional use. Thus, this bias has resulted in alack of usage of golden glaze on ceramics and also a lack of extensive studies of such glazes. In this paper, optimum conditionsand mechanism of formation of gold color crystallization glaze containing Fe2O3(hematite), which is developed for gold colorsof ceramic glazes, were studied. Experimental result showed that there are pyroxene based on diopside and TiO2 phase in thebase of a crystallization glaze with a value of TiO2 of 6wt% confirmed by XRD and Raman Spectroscopy. When Fe2O3 wasused as a colorant for the gold color, the TiO2 peak became extinct and the intensity of the diopside peak was sharper. Feldsparof 60wt%, talc of 20wt% and limestone of 20wt% were used as the starting materials and these were tested using a threecomponent system. The best result of test was selected and extended to its vicinity as an experiment to determine TiO2 andFe2O3 contents. The glaze with TiO2 of 6wt% and Fe2O3 of 12wt% addition showed stable pyroxene based diopside crystalsand the development of gold color. This gold color was obtained with CIE-L*a*b* values of 51.27, 4.46, 16.15 (a grayishyellow brown color), which was gained using the following firing conditions: temperature increasing speed 5oC/min, holdingfor 1h at 1280oC, annealing speed 3oC/min till 1100oC, holding for 2h at 1100oC, and finally natural annealing.
