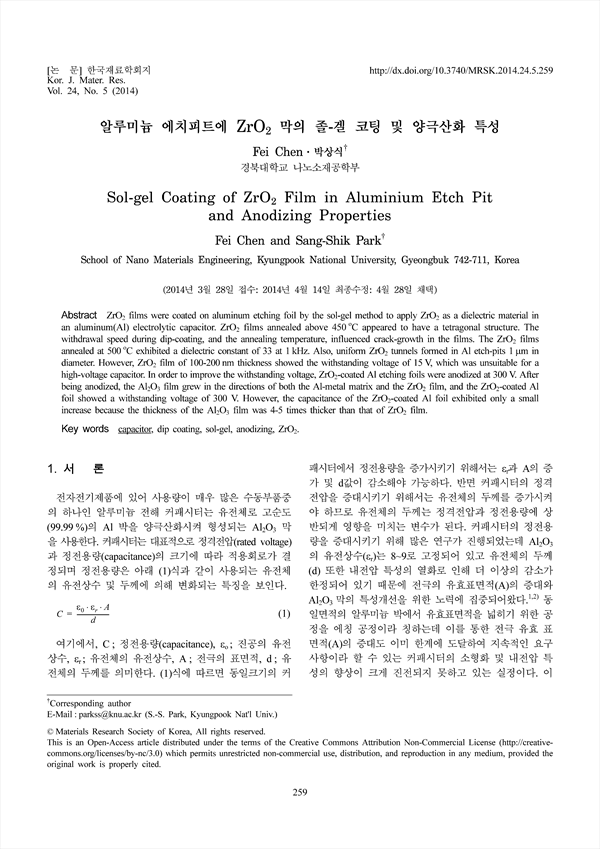

알루미늄 에치피트에 ZrO2 막의 졸-겔 코팅 및 양극산화 특성 KCI 등재 SCOPUS

Sol-gel Coating of ZrO2 Film in Aluminium Etch Pit and Anodizing Properties

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/297560
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국재료학회지 (Korean Journal of Materials Research)
한국재료학회 (Materials Research Society Of Korea)
초록

ZrO2 films were coated on aluminum etching foil by the sol-gel method to apply ZrO2 as a dielectric material in an aluminum(Al) electrolytic capacitor. ZrO2 films annealed above 450˚C appeared to have a tetragonal structure. The withdrawal speed during dip-coating, and the annealing temperature, influenced crack-growth in the films. The ZrO2 films annealed at 500˚C exhibited a dielectric constant of 33 at 1 kHz. Also, uniform ZrO2 tunnels formed in Al etch-pits 1μm in diameter. However, ZrO2 film of 100-200 nm thickness showed the withstanding voltage of 15 V, which was unsuitable for a high-voltage capacitor. In order to improve the withstanding voltage, ZrO2-coated Al etching foils were anodized at 300 V. After being anodized, the Al2O3 film grew in the directions of both the Al-metal matrix and the ZrO2 film, and the ZrO2-coated Al foil showed a withstanding voltage of 300 V. However, the capacitance of the ZrO2-coated Al foil exhibited only a small increase because the thickness of the Al2O3 film was 4-5 times thicker than that of ZrO2 film.

저자
  • Fei Chen(경북대학교 나노소재공학부)
  • 박상식( 경북대학교 나노소재공학부) | 박상식
