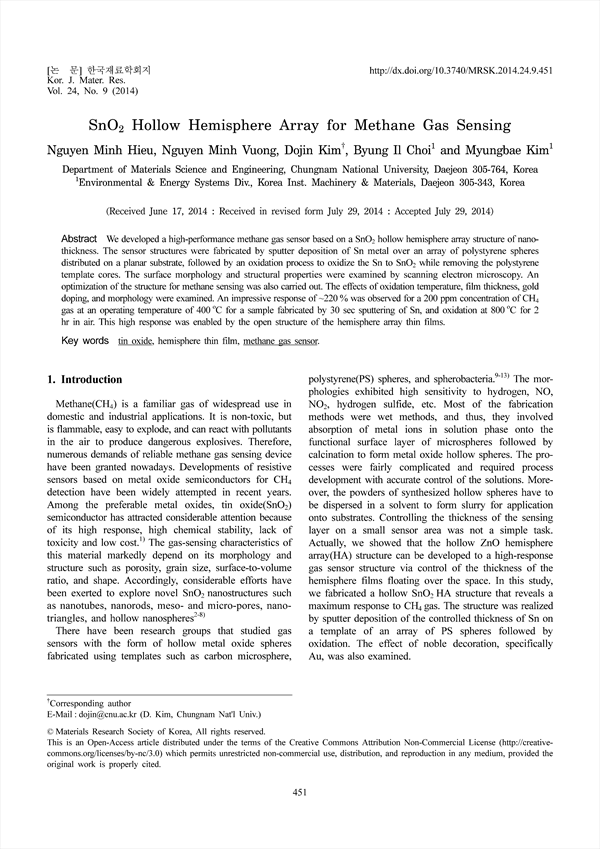

We developed a high-performance methane gas sensor based on a SnO2 hollow hemisphere array structure of nano-thickness. The sensor structures were fabricated by sputter deposition of Sn metal over an array of polystyrene spheres distributed on a planar substrate, followed by an oxidation process to oxidize the Sn to SnO2 while removing the polystyrene template cores. The surface morphology and structural properties were examined by scanning electron microscopy. An optimization of the structure for methane sensing was also carried out. The effects of oxidation temperature, film thickness, gold doping, and morphology were examined. An impressive response of ~220% was observed for a 200 ppm concentration of CH4 gas at an operating temperature of 400˚C for a sample fabricated by 30 sec sputtering of Sn, and oxidation at 800˚C for 2 hr in air. This high response was enabled by the open structure of the hemisphere array thin films.

• Hieu, Nguyen Minh(Department of Materials Science and Engineering, Chungnam National University, Daejeon 305-764, Korea)
• Vuong, Nguyen Minh(Department of Materials Science and Engineering, Chungnam National University, Daejeon 305-764, Korea)
• Kim, Dojin(Department of Materials Science and Engineering, Chungnam National University, Daejeon 305-764, Korea)
• Choi, Byung Il(Department of Materials Science and Engineering, Chungnam National University, Daejeon 305-764, Korea)
• Kim, Myungbae(Environmental & Energy Systems Div., Korea Inst. Machinery & Materials, Daejeon 305-343, Korea)
