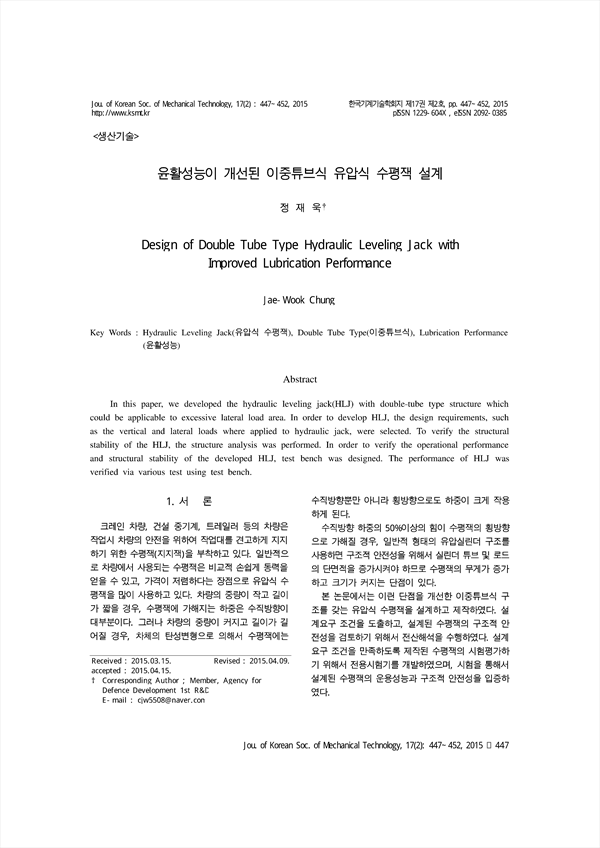

윤활성능이 개선된 이중튜브식 유압식 수평잭 설계 KCI 등재

Design of Double Tube Type Hydraulic Leveling Jack with Improved Lubrication Performance

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/298881
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

In this paper, we developed the hydraulic leveling jack(HLJ) with double-tube type structure which could be applicable to excessive lateral load area. In order to develop HLJ, the design requirements, such as the vertical and lateral loads where applied to hydraulic jack, were selected. To verify the structural stability of the HLJ, the structure analysis was performed. In order to verify the operational performance and structural stability of the developed HLJ, test bench was designed. The performance of HLJ was verified via various test using test bench.

목차
1. 서 론
 2. 유압식 수평잭 설계 및 구조해석
  2.1 수평잭 기본구조
  2.2 설계 및 해석
 3. 시험장치
 4. 시험 및 결과
 5. 결 론
 References
저자
  • 정재욱(Member, Agency for Defence Development 1st R&D) | Jae-W ook Chung Corresponding author
