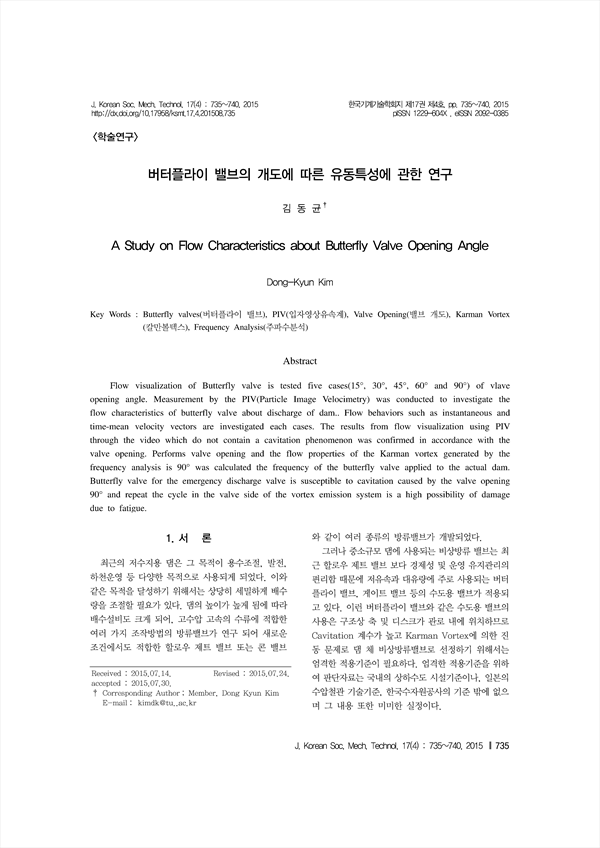

버터플라이 밸브의 개도에 따른 유동특성에 관한 연구 KCI 등재

A Study on Flow Characteristics about Butterfly Valve Opening Angle

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/305709
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

Flow visualization of Butterfly valve is tested five cases(15°, 30°, 45°, 60° and 90°) of vlave opening angle. Measurement by the PIV(Particle Image Velocimetry) was conducted to investigate the flow characteristics of butterfly valve about discharge of dam.. Flow behaviors such as instantaneous and time-mean velocity vectors are investigated each cases. The results from flow visualization using PIV through the video which do not contain a cavitation phenomenon was confirmed in accordance with the valve opening. Performs valve opening and the flow properties of the Karman vortex generated by the frequency analysis is 90° was calculated the frequency of the butterfly valve applied to the actual dam. Butterfly valve for the emergency discharge valve is susceptible to cavitation caused by the valve opening 90° and repeat the cycle in the valve side of the vortex emission system is a high possibility of damage due to fatigue.

저자
  • 김동균(Member, an assosiate professor in the department of Mechanical engineering of Tongmyong university) | Dong-Kyun Kim Corresponding Author
