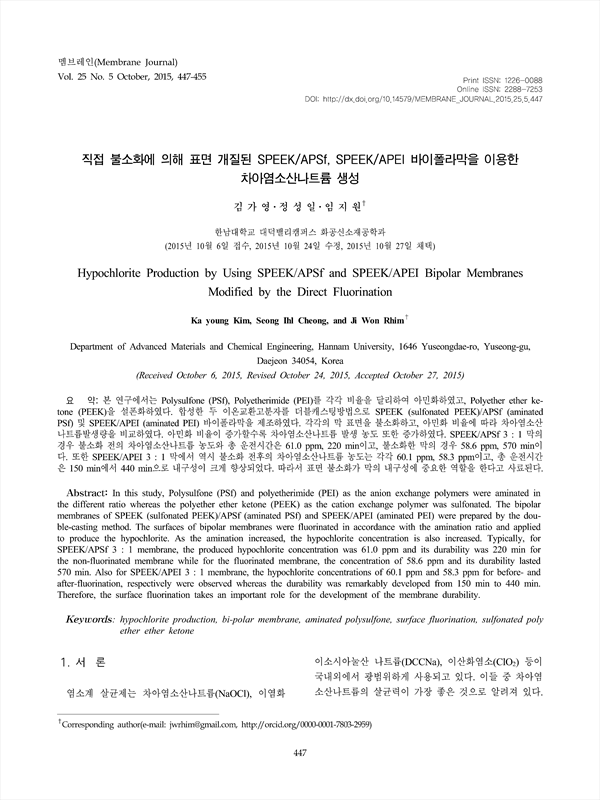

약: 본 연구에서는 Polysulfone (PSf), Polyetherimide (PEI)를 각각 비율을 달리하여 아민화하였고, Polyether ether ketone (PEEK)을 설폰화하였다. 합성한 두 이온교환고분자를 더블캐스팅방법으로 SPEEK (sulfonated PEEK)/APSf (aminated PSf) 및 SPEEK/APEI (aminated PEI) 바이폴라막을 제조하였다. 각각의 막 표면을 불소화하고, 아민화 비율에 따라 차아염소산 나트륨발생량을 비교하였다. 아민화 비율이 증가할수록 차아염소산나트륨 발생 농도 또한 증가하였다. SPEEK/APSf 3 : 1 막의 경우 불소화 전의 차아염소산나트륨 농도와 총 운전시간은 61.0 ppm, 220 min이고, 불소화한 막의 경우 58.6 ppm, 570 min이 다. 또한 SPEEK/APEI 3 : 1 막에서 역시 불소화 전후의 차아염소산나트륨 농도는 각각 60.1 ppm, 58.3 ppm이고, 총 운전시간 은 150 min에서 440 min으로 내구성이 크게 향상되었다. 따라서 표면 불소화가 막의 내구성에 중요한 역할을 한다고 사료된다.
In this study, Polysulfone (PSf) and polyetherimide (PEI) as the anion exchange polymers were aminated in the different ratio whereas the polyether ether ketone (PEEK) as the cation exchange polymer was sulfonated. The bipolar membranes of SPEEK (sulfonated PEEK)/APSf (aminated PSf) and SPEEK/APEI (aminated PEI) were prepared by the double- casting method. The surfaces of bipolar membranes were fluorinated in accordance with the amination ratio and applied to produce the hypochlorite. As the amination increased, the hypochlorite concentration is also increased. Typically, for SPEEK/APSf 3 : 1 membrane, the produced hypochlorite concentration was 61.0 ppm and its durability was 220 min for the non-fluorinated membrane while for the fluorinated membrane, the concentration of 58.6 ppm and its durability lasted 570 min. Also for SPEEK/APEI 3 : 1 membrane, the hypochlorite concentrations of 60.1 ppm and 58.3 ppm for before- and after-fluorination, respectively were observed whereas the durability was remarkably developed from 150 min to 440 min. Therefore, the surface fluorination takes an important role for the development of the membrane durability.
2. 실 험
2.1. 시약 및 재료
2.2. 음이온교환 고분자 합성
2.3. 양이온교환 고분자 합성
2.4. 바이폴라막 제조
2.5. 표면 불소화
2.6. 막 특성평가
2.7. 차아염소산나트륨 발생 실험
3. 결과 및 고찰
3.1. 막 특성평가
3.2. 차아염소산나트륨 발생 실험
4. 결 론
감 사
Reference
