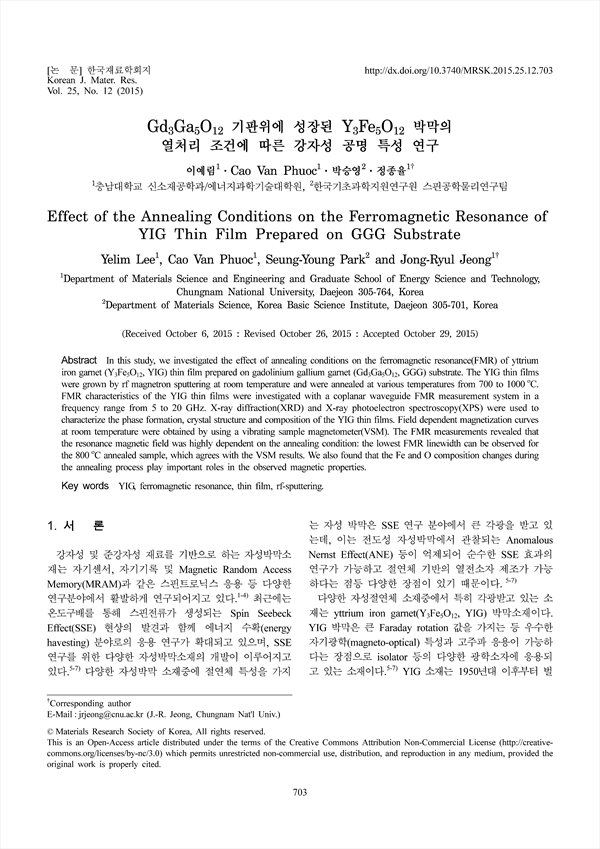

Gd3Ga5O12 기판위에 성장된 Y3Fe5O12 박막의 열처리 조건에 따른 강자성 공명 특성 연구 KCI 등재 SCOPUS
Effect of the Annealing Conditions on the Ferromagnetic Resonance of YIG Thin Film Prepared on GGG Substrate
pp.703-707
In this study, we investigated the effect of annealing conditions on the ferromagnetic resonance(FMR) of yttrium iron garnet (Y3Fe5O12, YIG) thin film prepared on gadolinium gallium garnet (Gd3Ga5O12, GGG) substrate. The YIG thin films were grown by rf magnetron sputtering at room temperature and were annealed at various temperatures from 700 to 1000 ˚C. FMR characteristics of the YIG thin films were investigated with a coplanar waveguide FMR measurement system in a frequency range from 5 to 20 GHz. X-ray diffraction(XRD) and X-ray photoelectron spectroscopy(XPS) were used to characterize the phase formation, crystal structure and composition of the YIG thin films. Field dependent magnetization curves at room temperature were obtained by using a vibrating sample magnetometer(VSM). The FMR measurements revealed that the resonance magnetic field was highly dependent on the annealing condition: the lowest FMR linewidth can be observed for the 800 ˚C annealed sample, which agrees with the VSM results. We also found that the Fe and O composition changes during the annealing process play important roles in the observed magnetic properties.
2. 실험 방법
3. 결과 및 고찰
4. 결 론
Acknowledgement
References
