Development on Manufacturing the Equipment and Shielding Sheet of the EMI Shielding Sheet of Grid Pattern for the Wireless Charger

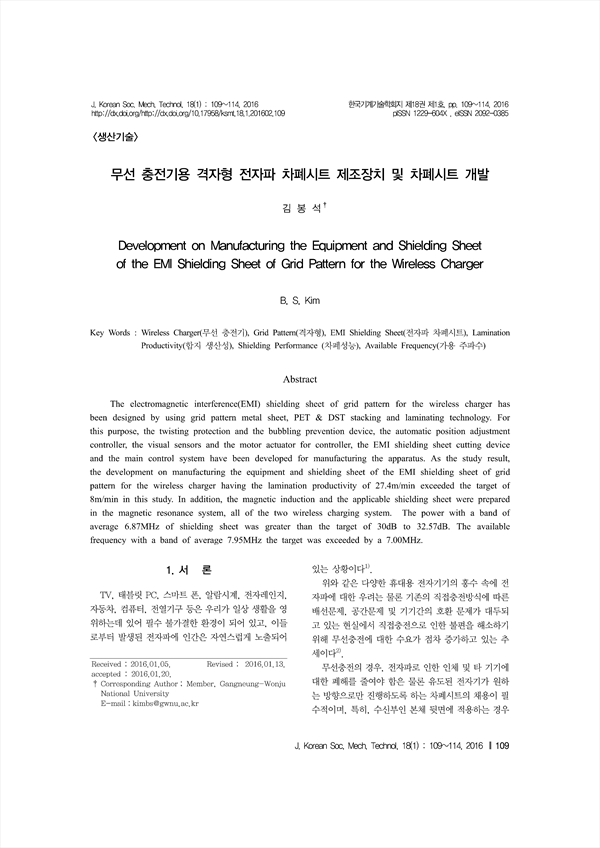

The electromagnetic interference(EMI) shielding sheet of grid pattern for the wireless charger has been designed by using grid pattern metal sheet, PET & DST stacking and laminating technology. For this purpose, the twisting protection and the bubbling prevention device, the automatic position adjustment controller, the visual sensors and the motor actuator for controller, the EMI shielding sheet cutting device and the main control system have been developed for manufacturing the apparatus. As the study result, the development on manufacturing the equipment and shielding sheet of the EMI shielding sheet of grid pattern for the wireless charger having the lamination productivity of 27.4m/min exceeded the target of 8m/min in this study. In addition, the magnetic induction and the applicable shielding sheet were prepared in the magnetic resonance system, all of the two wireless charging system. The power with a band of average 6.87MHz of shielding sheet was greater than the target of 30dB to 32.57dB. The available frequency with a band of average 7.95MHz the target was exceeded by a 7.00MHz.
