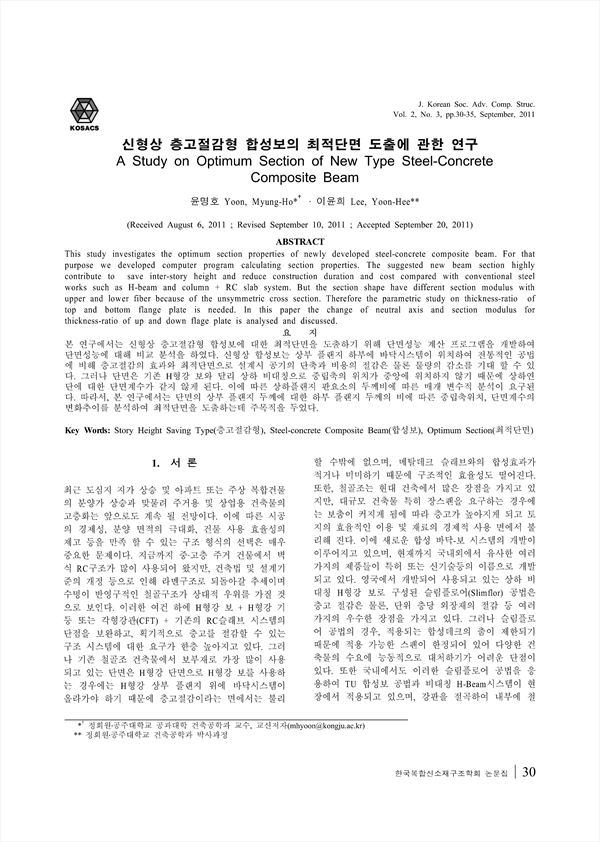

신형상 층고절감형 합성보의 최적단면 도출에 관한 연구 KCI 등재

A Study on Optimum Section of New Type Steel-Concrete Composite Beam

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/312622
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
복합신소재구조학회 논문집 (Journal of the Korean Society for Advanced Composite Structures)
한국복합신소재구조학회 (Korean Society for Advanced Composite Structures)
초록

본 연구에서는 신형상 층고절감형 합성보에 대한 최적단면을 도출하기 위해 단면성능 계산 프로그램을 개발하여 단면성능에 대해 비교 분석을 하였다. 신형상 합성보는 상부 플랜지 하부에 바닥시스템이 위치하여 전통적인 공법 에 비해 층고절감의 효과와 최적단면으로 설계시 공기의 단축과 비용의 절감은 물론 물량의 감소를 기대 할 수 있 다. 그러나 단면은 기존 H형강 보와 달리 상하 비대칭으로 중립축의 위치가 중앙에 위치하지 않기 때문에 상하연 단에 대한 단면계수가 같지 않게 된다. 이에 따른 상하플랜지 판요소의 두께비에 따른 매개 변수적 분석이 요구된 다. 따라서, 본 연구에서는 단면의 상부 플랜지 두께에 대한 하부 플랜지 두께의 비에 따른 중립축위치, 단면계수의 변화추이를 분석하여 최적단면을 도출하는데 주목적을 두었다.

This study investigates the optimum section properties of newly developed steel-concrete composite beam. For that purpose we developed computer program calculating section properties. The suggested new beam section highly contribute to save inter-story height and reduce construction duration and cost compared with conventional steel works such as H-beam and column + RC slab system. But the section shape have different section modulus with upper and lower fiber because of the unsymmetric cross section. Therefore the parametric study on thickness-ratio of top and bottom flange plate is needed. In this paper the change of neutral axis and section modulus for thickness-ratio of up and down flage plate is analysed and discussed.

저자
  • 윤명호(공주대학교 공과대학 건축공학과 교수) | Yoon, Myung-Ho 교신저자
  • 이윤희(공주대학교 건축공학과 박사과정) | Lee, Yoon-Hee
