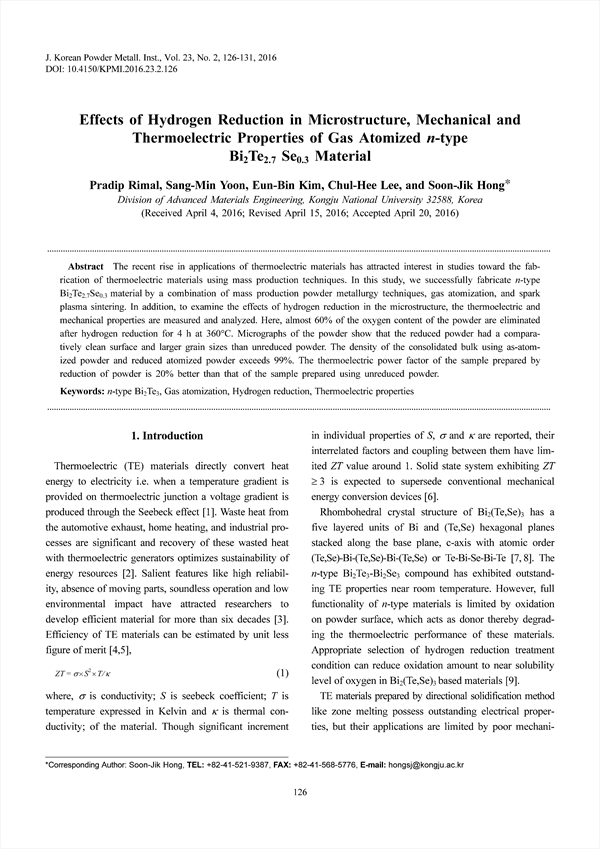

The recent rise in applications of thermoelectric materials has attracted interest in studies toward the fabrication of thermoelectric materials using mass production techniques. In this study, we successfully fabricate n-type Bi2Te2.7Se0.3 material by a combination of mass production powder metallurgy techniques, gas atomization, and spark plasma sintering. In addition, to examine the effects of hydrogen reduction in the microstructure, the thermoelectric and mechanical properties are measured and analyzed. Here, almost 60% of the oxygen content of the powder are eliminated after hydrogen reduction for 4 h at 360°C. Micrographs of the powder show that the reduced powder had a comparatively clean surface and larger grain sizes than unreduced powder. The density of the consolidated bulk using as-atomized powder and reduced atomized powder exceeds 99%. The thermoelectric power factor of the sample prepared by reduction of powder is 20% better than that of the sample prepared using unreduced powder.

1. Introduction
2. Experimental Procedure
3. Results and Discussions
4. Conclusions
Acknowledgements
References

• Pradip Rimal(Division of Advanced Materials Engineering, Kongju National University)
• Sang-Min Yoon(Division of Advanced Materials Engineering, Kongju National University)
• Eun-Bin Kim(Division of Advanced Materials Engineering, Kongju National University)
• Chul-Hee Lee(Division of Advanced Materials Engineering, Kongju National University)
• Soon-Jik Hong(Division of Advanced Materials Engineering, Kongju National University) Corresponding author
