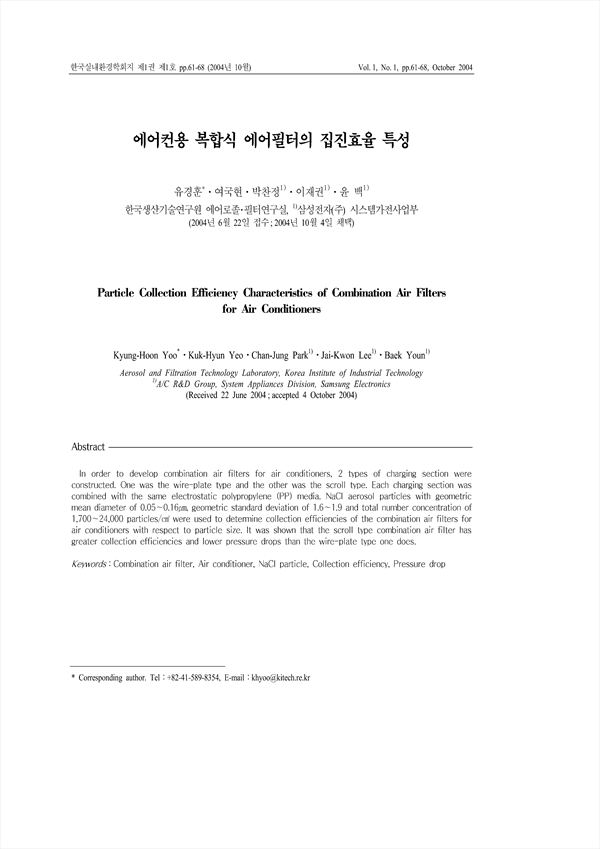

In order to develop combination air filters for air conditioners, 2 types of charging section were constructed. One was the wire-plate type and the other was the scroll type. Each charging section was combined with the same electrostatic polypropylene (PP) media. NaCl aerosol particles with geometric mean diameter of 0.05∼0.16㎛, geometric standard deviation of 1.6∼1.9 and total number concentration of 1,700∼24,000 particles/㎤ were used to determine collection efficiencies of the combination air filters for air conditioners with respect to particle size. It was shown that the scroll type combination air filter has greater collection efficiencies and lower pressure drops than the wire-plate type one does.

• 유경훈
• 여국현
• 박찬정
• 이재권
• 윤백
