pp.72-81

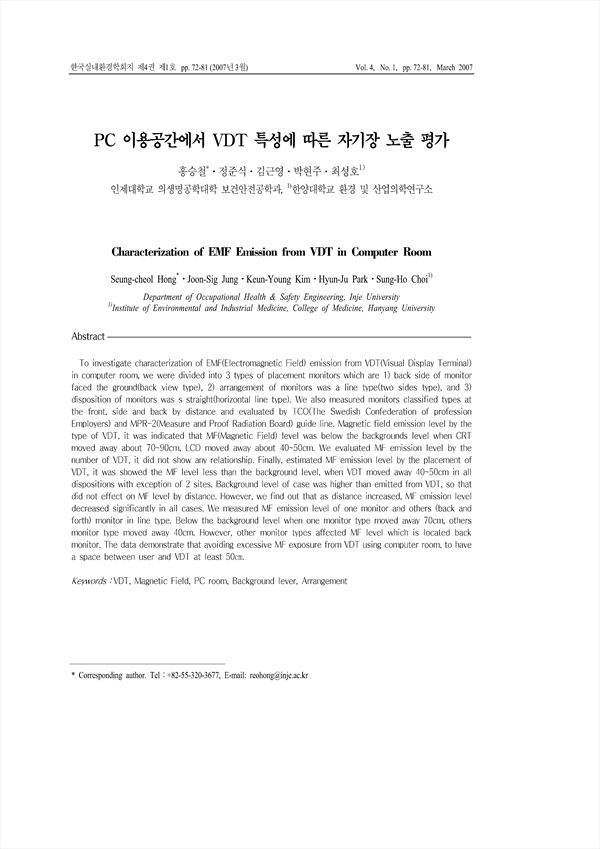

To investigate characterization of EMF(Electromagnetic Field) emission from VDT(Visual Display Terminal) in computer room, we were divided into 3 types of placement monitors which are 1) back side of monitor faced the ground(back view type), 2) arrangement of monitors was a line type(two sides type), and 3) disposition of monitors was s straight(horizontal line type). We also measured monitors classified types at the front, side and back by distance and evaluated by TCO(The Swedish Confederation of profession Employers) and MPR-2(Measure and Proof Radiation Board) guide line. Magnetic field emission level by the type of VDT, it was indicated that MF(Magnetic Field) level was below the backgrounds level when CRT moved away about 70~90cm, LCD moved away about 40~50cm. We evaluated MF emission level by the number of VDT, it did not show any relationship. Finally, estimated MF emission level by the placement of VDT, it was showed the MF level less than the background level, when VDT moved away 40~50cm in all dispositions with exception of 2 sites. Background level of case was higher than emitted from VDT, so that did not effect on MF level by distance. However, we find out that as distance increased, MF emission level decreased significantly in all cases. We measured MF emission level of one monitor and others (back and forth) monitor in line type. Below the background level when one monitor type moved away 70cm, others monitor type moved away 40cm. However, other monitor types affected MF level which is located back monitor. The data demonstrate that avoiding excessive MF exposure from VDT using computer room, to have a space between user and VDT at least 50㎝.
