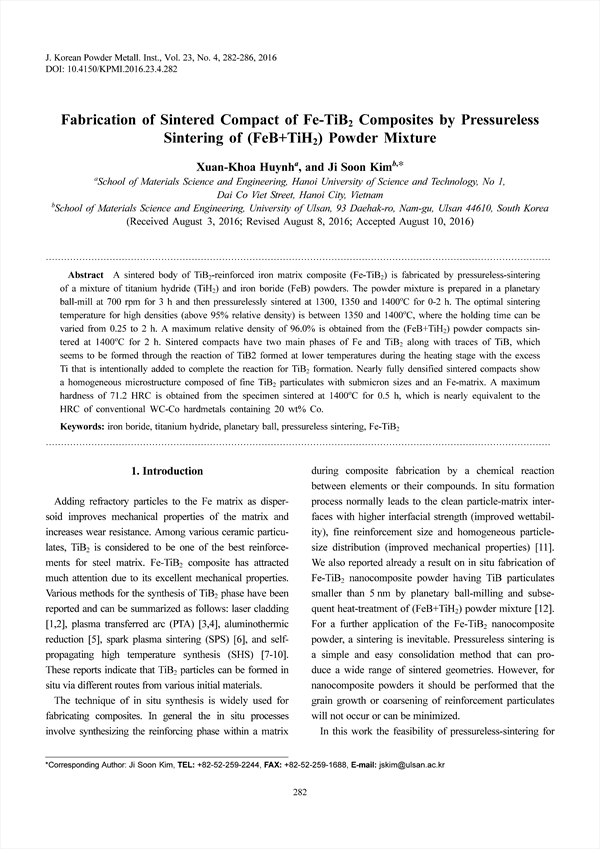

A sintered body of TiB2-reinforced iron matrix composite (Fe-TiB2) is fabricated by pressureless-sintering of a mixture of titanium hydride (TiH2) and iron boride (FeB) powders. The powder mixture is prepared in a planetary ball-mill at 700 rpm for 3 h and then pressurelessly sintered at 1300, 1350 and 1400oC for 0-2 h. The optimal sintering temperature for high densities (above 95% relative density) is between 1350 and 1400oC, where the holding time can be varied from 0.25 to 2 h. A maximum relative density of 96.0% is obtained from the (FeB+TiH2) powder compacts sintered at 1400oC for 2 h. Sintered compacts have two main phases of Fe and TiB2 along with traces of TiB, which seems to be formed through the reaction of TiB2 formed at lower temperatures during the heating stage with the excess Ti that is intentionally added to complete the reaction for TiB2 formation. Nearly fully densified sintered compacts show a homogeneous microstructure composed of fine TiB2 particulates with submicron sizes and an Fe-matrix. A maximum hardness of 71.2 HRC is obtained from the specimen sintered at 1400oC for 0.5 h, which is nearly equivalent to the HRC of conventional WC-Co hardmetals containing 20 wt% Co.

1. Introduction
 2. Experimental Procedures
 3. Results and Discussion
  3.1. Sintered density vs. sintering temperature andtime
  3.2. XRD phase analysis
  3.3. Microstructure of sintered compacts
  3. 4. Hardness
 4. Conclusion
 Acknowledgements
 References

• Xuan-Khoa Huynh(School of Materials Science and Engineering, Hanoi University of Science and Technology, No 1, Dai Co Viet Street, Hanoi City, Vietnam)
• Ji Soon Kim(School of Materials Science and Engineering, University of Ulsan, 93 Daehak-ro, Nam-gu, Ulsan 44610, South Korea) Corresponding Author
