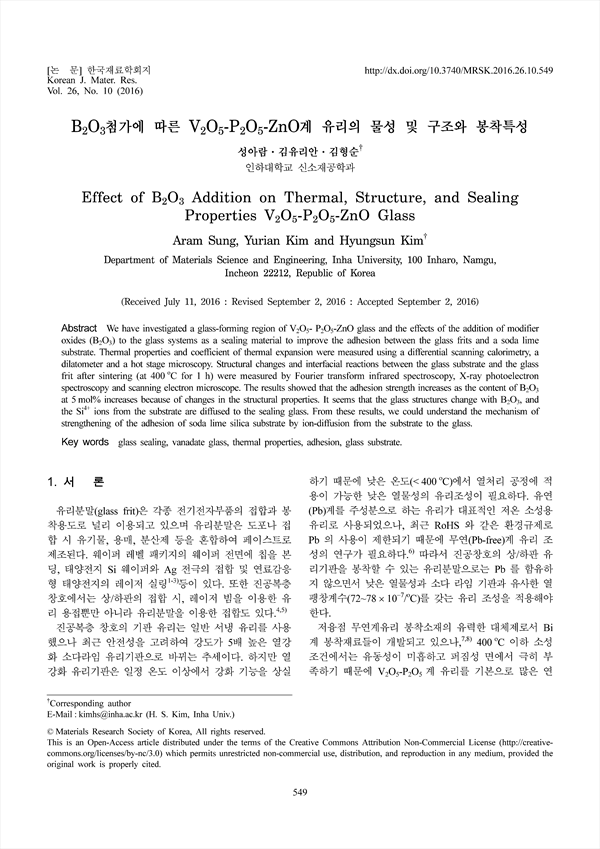

We have investigated a glass-forming region of V2O5- P2O5-ZnO glass and the effects of the addition of modifier oxides (B2O3) to the glass systems as a sealing material to improve the adhesion between the glass frits and a soda lime substrate. Thermal properties and coefficient of thermal expansion were measured using a differential scanning calorimetry, a dilatometer and a hot stage microscopy. Structural changes and interfacial reactions between the glass substrate and the glass frit after sintering (at 400 oC for 1 h) were measured by Fourier transform infrared spectroscopy, X-ray photoelectron spectroscopy and scanning electron microscope. The results showed that the adhesion strength increases as the content of B2O3 at 5 mol% increases because of changes in the structural properties. It seems that the glass structures change with B2O3, and the Si4+ ions from the substrate are diffused to the sealing glass. From these results, we could understand the mechanism of strengthening of the adhesion of soda lime silica substrate by ion-diffusion from the substrate to the glass.

1. 서 론
 2. 연구 방법
 3. 결과 및 고찰
  3.1 유리형성과 추가 산화물의 선정
  3.2 B2O3 함량 증가에 따른 유리특성
 4. 결 론
 References

• 성아람(인하대학교 신소재공학과) | Aram Sung
• 김유리안(인하대학교 신소재공학과) | Yurian Kim
• 김형순(인하대학교 신소재공학과) | Hyungsun Kim Corresponding author
