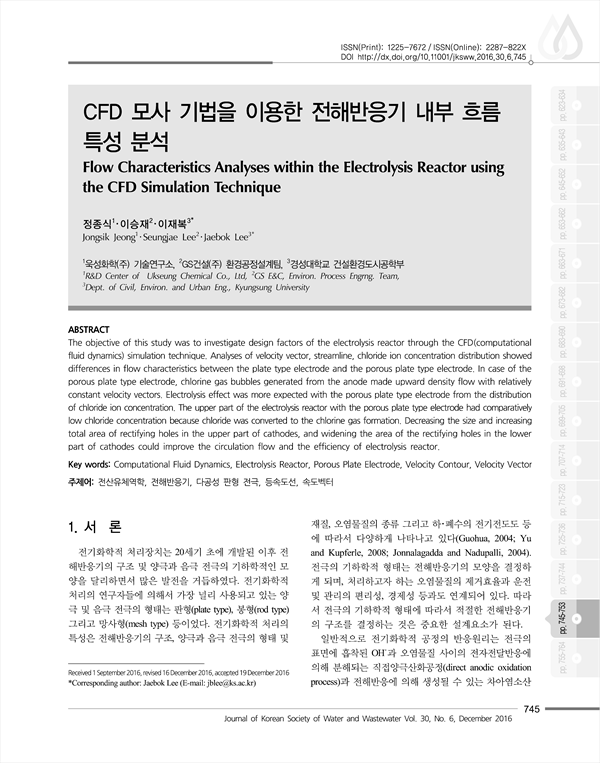

CFD 모사 기법을 이용한 전해반응기 내부 흐름 특성 분석 KCI 등재

Flow Characteristics Analyses within the Electrolysis Reactor using the CFD Simulation Technique

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/327392
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
상하수도학회지 (Journal of the Korean Society of Water and Wastewater)
대한상하수도학회 (Korean Society Of Water And Wastewater)
초록

The objective of this study was to investigate design factors of the electrolysis reactor through the CFD(computational fluid dynamics) simulation technique. Analyses of velocity vector, streamline, chloride ion concentration distribution showed differences in flow characteristics between the plate type electrode and the porous plate type electrode. In case of the porous plate type electrode, chlorine gas bubbles generated from the anode made upward density flow with relatively constant velocity vectors. Electrolysis effect was more expected with the porous plate type electrode from the distribution of chloride ion concentration. The upper part of the electrolysis reactor with the porous plate type electrode had comparatively low chloride concentration because chloride was converted to the chlorine gas formation. Decreasing the size and increasing total area of rectifying holes in the upper part of cathodes, and widening the area of the rectifying holes in the lower part of cathodes could improve the circulation flow and the efficiency of electrolysis reactor.

저자
  • 정종식(욱성화학(주) 기술연구소) | Jongsik Jeong (R&D Center of Ukseung Chemical Co., Ltd)
  • 이승재(GS건설(주) 환경공정설계팀) | Seungjae Lee (GS E&C, Environ. Process Engrng. Team)
  • 이재복(경성대학교 건설환경도시공학부) | Jaebok Lee (Dept. of Civil, Environ. and Urban Eng., Kyungsung University) Corresponding author
