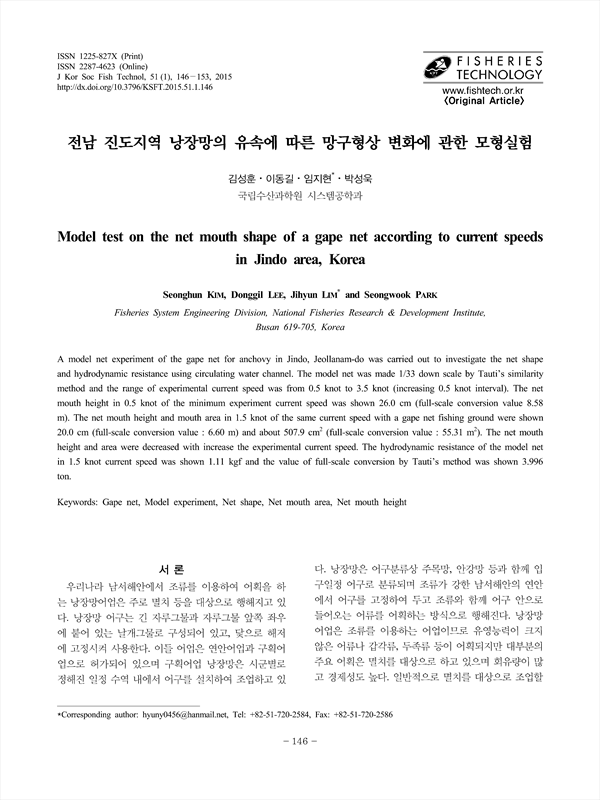

A model net experiment of the gape net for anchovy in Jindo, Jeollanam-do was carried out to investigate the net shape and hydrodynamic resistance using circulating water channel. The model net was made 1/33 down scale by Tauti’s similarity method and the range of experimental current speed was from 0.5 knot to 3.5 knot (increasing 0.5 knot interval). The net mouth height in 0.5 knot of the minimum experiment current speed was shown 26.0 cm (full-scale conversion value 8.58 m). The net mouth height and mouth area in 1.5 knot of the same current speed with a gape net fishing ground were shown 20.0 cm (full-scale conversion value : 6.60 m) and about 507.9 cm2 (full-scale conversion value : 55.31 m2). The net mouth height and area were decreased with increase the experimental current speed. The hydrodynamic resistance of the model net in 1.5 knot current speed was shown 1.11 kgf and the value of full-scale conversion by Tauti’s method was shown 3.996 ton.
