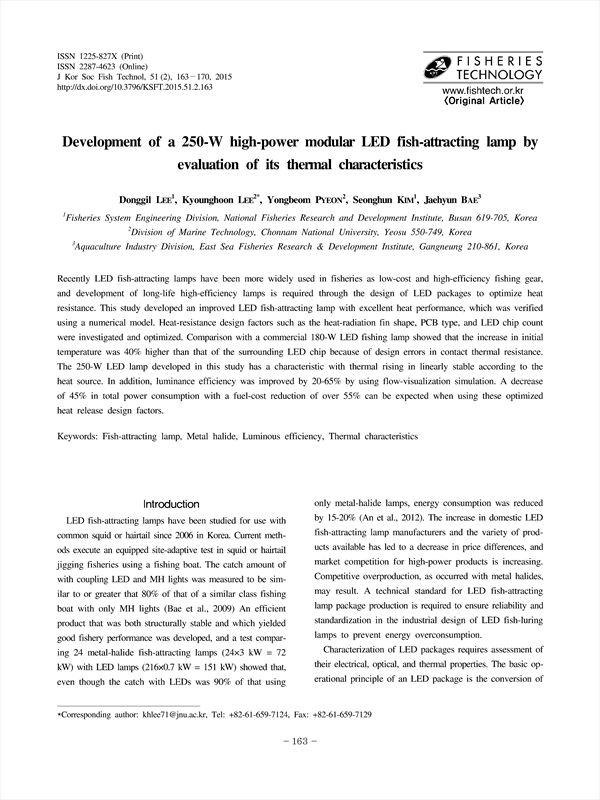

Recently LED fish-attracting lamps have been more widely used in fisheries as low-cost and high-efficiency fishing gear, and development of long-life high-efficiency lamps is required through the design of LED packages to optimize heat resistance. This study developed an improved LED fish-attracting lamp with excellent heat performance, which was verified using a numerical model. Heat-resistance design factors such as the heat-radiation fin shape, PCB type, and LED chip count were investigated and optimized. Comparison with a commercial 180-W LED fishing lamp showed that the increase in initial temperature was 40% higher than that of the surrounding LED chip because of design errors in contact thermal resistance. The 250-W LED lamp developed in this study has a characteristic with thermal rising in linearly stable according to the heat source. In addition, luminance efficiency was improved by 20-65% by using flow-visualization simulation. A decrease of 45% in total power consumption with a fuel-cost reduction of over 55% can be expected when using these optimized heat release design factors.

• Donggil LEE(Fisheries System Engineering Division, National Fisheries Research and Development Institute, Busan 619-705, Korea)
• Kyounghoon LEE(Division of Marine Technology, Chonnam National University, Yeosu 550-749, Korea) Corresponding author
• Yongbeom PYEON(Division of Marine Technology, Chonnam National University, Yeosu 550-749, Korea)
• Seonghun KIM(Fisheries System Engineering Division, National Fisheries Research and Development Institute, Busan 619-705, Korea)
• Jaehyun BAE(Aquaculture Industry Division, East Sea Fisheries Research & Development Institute, Gangneung 210-861, Korea)
