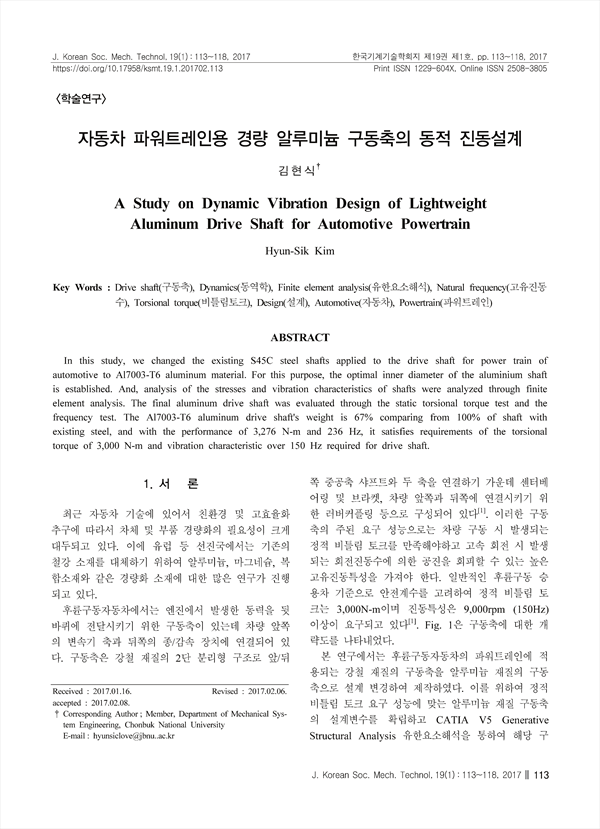

In this study, we changed the existing S45C steel shafts applied to the drive shaft for power train of automotive to Al7003-T6 aluminum material. For this purpose, the optimal inner diameter of the aluminium shaft is established. And, analysis of the stresses and vibration characteristics of shafts were analyzed through finite element analysis. The final aluminum drive shaft was evaluated through the static torsional torque test and the frequency test. The Al7003-T6 aluminum drive shaft's weight is 67% comparing from 100% of shaft with existing steel, and with the performance of 3,276 N-m and 236 Hz, it satisfies requirements of the torsional torque of 3,000 N-m and vibration characteristic over 150 Hz required for drive shaft.

• 김현식(Department of Mechanical System Engineering, Chonbuk National University) | Hyun-Sik Kim Corresponding Author
