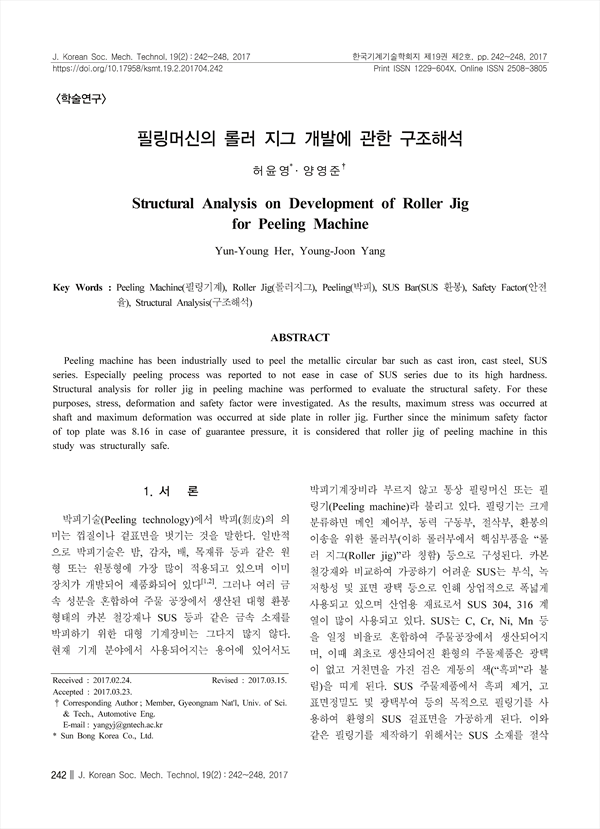

Peeling machine has been industrially used to peel the metallic circular bar such as cast iron, cast steel, SUS series. Especially peeling process was reported to not ease in case of SUS series due to its high hardness. Structural analysis for roller jig in peeling machine was performed to evaluate the structural safety. For these purposes, stress, deformation and safety factor were investigated. As the results, maximum stress was occurred at shaft and maximum deformation was occurred at side plate in roller jig. Further since the minimum safety factor of top plate was 8.16 in case of guarantee pressure, it is considered that roller jig of peeling machine in this study was structurally safe.

• 허윤영(Sun Bong Korea Co., Ltd.) | Yun-Young Her
• 양영준(Gyeongnam Nat'l, Univ. of Sci. & Tech., Automotive Eng.) | Young-Joon Yang Corresponding Author
