pp.156-161

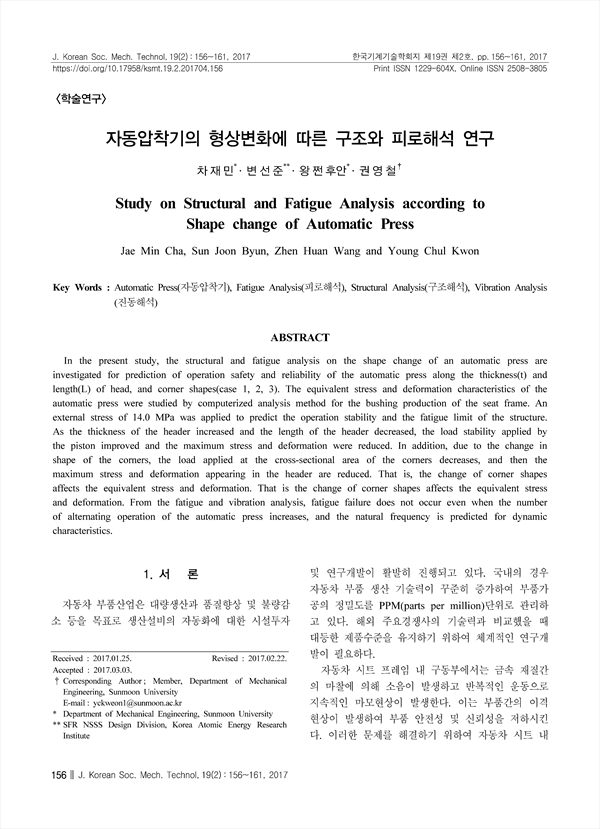

In the present study, the structural and fatigue analysis on the shape change of an automatic press are investigated for prediction of operation safety and reliability of the automatic press along the thickness(t) and length(L) of head, and corner shapes(case 1, 2, 3). The equivalent stress and deformation characteristics of the automatic press were studied by computerized analysis method for the bushing production of the seat frame. An external stress of 14.0 MPa was applied to predict the operation stability and the fatigue limit of the structure. As the thickness of the header increased and the length of the header decreased, the load stability applied by the piston improved and the maximum stress and deformation were reduced. In addition, due to the change in shape of the corners, the load applied at the cross-sectional area of the corners decreases, and then the maximum stress and deformation appearing in the header are reduced. That is, the change of corner shapes affects the equivalent stress and deformation. That is the change of corner shapes affects the equivalent stress and deformation. From the fatigue and vibration analysis, fatigue failure does not occur even when the number of alternating operation of the automatic press increases, and the natural frequency is predicted for dynamic characteristics.
