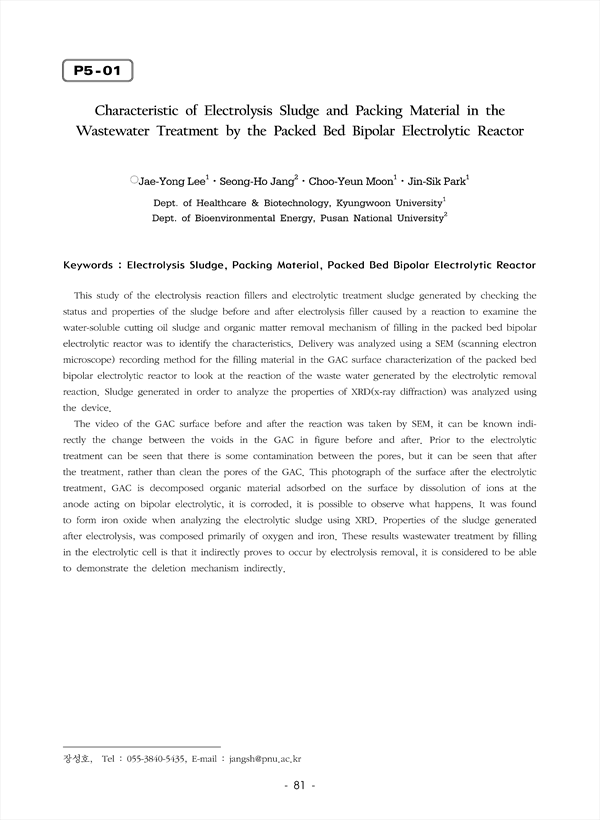

Characteristic of Electrolysis Sludge and Packing Material in the Wastewater Treatment by the Packed Bed Bipolar Electrolytic Reactor
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/342523
This study of the electrolysis reaction fillers and electrolytic treatment sludge generated by checking the status and properties of the sludge before and after electrolysis filler caused by a reaction to examine the water-soluble cutting oil sludge and organic matter removal mechanism of filling in the packed bed bipolar electrolytic reactor was to identify the characteristics. Delivery was analyzed using a SEM (scanning electron microscope) recording method for the filling material in the GAC surface characterization of the packed bed bipolar electrolytic reactor to look at the reaction of the waste water generated by the electrolytic removal reaction. Sludge generated in order to analyze the properties of XRD(x-ray diffraction) was analyzed using the device. The video of the GAC surface before and after the reaction was taken by SEM, it can be known indirectly the change between the voids in the GAC in figure before and after. Prior to the electrolytic treatment can be seen that there is some contamination between the pores, but it can be seen that after the treatment, rather than clean the pores of the GAC. This photograph of the surface after the electrolytic treatment, GAC is decomposed organic material adsorbed on the surface by dissolution of ions at the anode acting on bipolar electrolytic, it is corroded, it is possible to observe what happens. It was found to form iron oxide when analyzing the electrolytic sludge using XRD. Properties of the sludge generated after electrolysis, was composed primarily of oxygen and iron. These results wastewater treatment by filling in the electrolytic cell is that it indirectly proves to occur by electrolysis removal, it is considered to be able to demonstrate the deletion mechanism indirectly.
