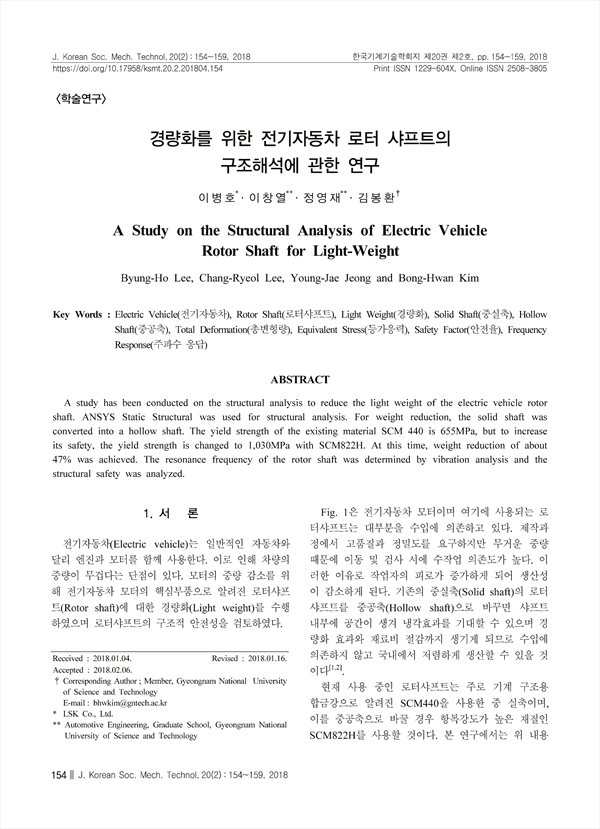

경량화를 위한 전기자동차 로터 샤프트의 구조해석에 관한 연구

이병호; 이창열; 정영재; 김봉환

논문 상세보기

경량화를 위한 전기자동차 로터 샤프트의 구조해석에 관한 연구 KCI 등재

A Study on the Structural Analysis of Electric Vehicle Rotor Shaft for Light-Weight

이병호, 이창열, 정영재, 김봉환

언어KOR
URLhttps://db.koreascholar.com/Article/Detail/348122

구독 기관 인증 시 무료 이용이 가능합니다. 4,000원

한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)

제20권 제2호 (2018.04)
pp.154-159

한국기계기술학회 (Korean Society of Mechanical Technology)

초록

A study has been conducted on the structural analysis to reduce the light weight of the electric vehicle rotor shaft. ANSYS Static Structural was used for structural analysis. For weight reduction, the solid shaft was converted into a hollow shaft. The yield strength of the existing material SCM 440 is 655MPa, but to increase its safety, the yield strength is changed to 1,030MPa with SCM822H. At this time, weight reduction of about 47% was achieved. The resonance frequency of the rotor shaft was determined by vibration analysis and the structural safety was analyzed.

키워드

Electric Vehicle(전기자동차)Rotor Shaft(로터샤프트)Light Weight(경량화)Solid Shaft(중실축)Hollow Shaft(중공축)Total Deformation(총변형량)Equivalent Stress(등가응력)Safety Factor(안전율)Frequency Response(주파수 응답)
