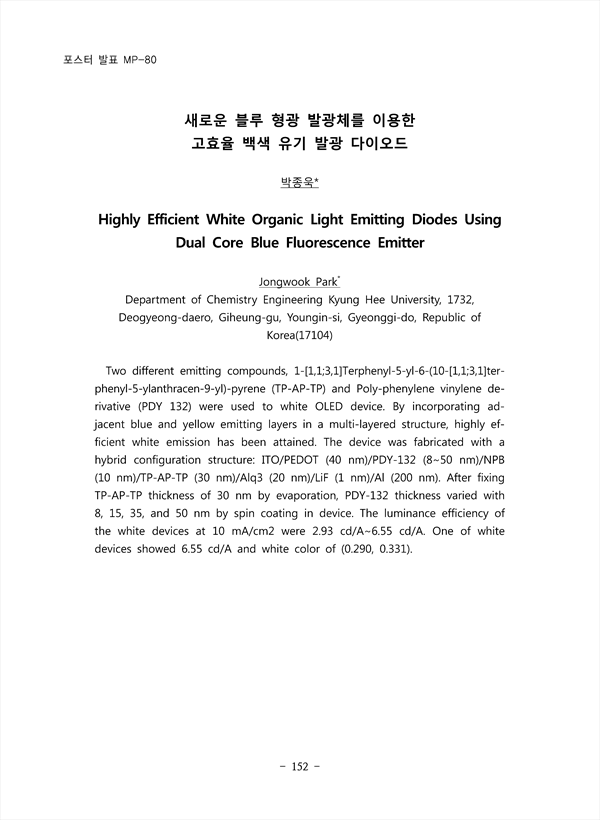

새로운 블루 형광 발광체를 이용한 고효율 백색 유기 발광 다이오드

Highly Efficient White Organic Light Emitting Diodes Using Dual Core Blue Fluorescence Emitter

  • 언어ENG
  • URLhttps://db.koreascholar.com/Article/Detail/348726
모든 회원에게 무료로 제공됩니다.
한국막학회 (The Membrane Society Of Korea)
초록

Two different emitting compounds, 1-[1,1;3,1]Terphenyl-5-yl-6-(10-[1,1;3,1]terphenyl-5-ylanthracen-9-yl)-pyrene (TP-AP-TP) and Poly-phenylene vinylene derivative (PDY 132) were used to white OLED device. By incorporating adjacent blue and yellow emitting layers in a multi-layered structure, highly efficient white emission has been attained. The device was fabricated with a hybrid configuration structure: ITO/PEDOT (40 nm)/PDY-132 (8∼50 nm)/NPB (10 nm)/TP-AP-TP (30 nm)/Alq3 (20 nm)/LiF (1 nm)/Al (200 nm). After fixing TP-AP-TP thickness of 30 nm by evaporation, PDY-132 thickness varied with 8, 15, 35, and 50 nm by spin coating in device. The luminance efficiency of the white devices at 10 mA/cm2 were 2.93 cd/A∼6.55 cd/A. One of white devices showed 6.55 cd/A and white color of (0.290, 0.331).

저자
  • 박종욱(Department of Chemistry Engineering Kyung Hee University) | Jongwook Park
