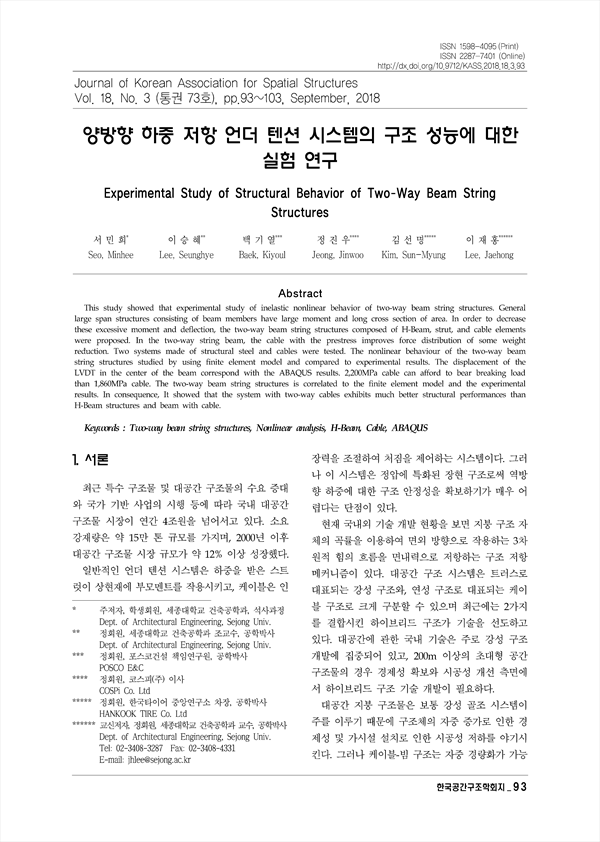

양방향 하중 저항 언더 텐션 시스템의 구조 성능에 대한 실험 연구 KCI 등재

Experimental Study of Structural Behavior of Two-Way Beam String Structures

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/356859
구독 기관 인증 시 무료 이용이 가능합니다. 4,200원
한국공간구조학회지 (JOURNAL OF THE KOREAN ASSOCIATION FOR AND SPATIAL STRUCTURES)
한국공간구조학회 (Korean Association for Spatial Structures)
초록

This study showed that experimental study of inelastic nonlinear behavior of two-way beam string structures. General large span structures consisting of beam members have large moment and long cross section of area. In order to decrease these excessive moment and deflection, the two-way beam string structures composed of H-Beam, strut, and cable elements were proposed. In the two-way string beam, the cable with the prestress improves force distribution of some weight reduction. Two systems made of structural steel and cables were tested. The nonlinear behaviour of the two-way beam string structures studied by using finite element model and compared to experimental results. The displacement of the LVDT in the center of the beam correspond with the ABAQUS results. 2,200MPa cable can afford to bear breaking load than 1,860MPa cable. The two-way beam string structures is correlated to the finite element model and the experimental results. In consequence, It showed that the system with two-way cables exhibits much better structural performances than H-Beam structures and beam with cable.

목차
Abstract
 1. 서론
 2. 언더 텐션 시스템
  2.1 일방향 하중 저항 언더 텐션 시스템
  2.2 양방향 하중 저항 언더 텐션 시스템
 3. 언더 텐션 시스템의 실험
  3.1 실험체 제작
  3.2 재료 시험
  3.3 실험체 설치 및 가력 계획
   3.3.1 세팅 계획
   3.3.2 게이지 및 변위계 배치도
   3.3.3 하중 이력
 4. 실험 결과 및 해석
  4.1 1,860MPa 케이블 실험체
   4.1.1 실험 종료 상황
   4.1.2 강성 평가
   4.1.3 케이블
  4.2 2,200MPa 케이블 실험체
   4.2.1 실험 종료 상황
   4.2.2 강성 평가
   4.2.3 케이블
 5. ABAQUS 정밀 해석
  5.1 실험 후 현안
  5.2 ABAQUS 해석을 위한 가정
  5.3 비선형 해석 결과
   5.3.1 1,860MPa 케이블 실험체
   5.3.2 2,200MPa 케이블 실험체
 6. 결론
 감사의 글
 References
저자
  • 서민희(세종대학교 건축공학과, 석사과정, Dept. of Architectural Engineering, Sejong Univ.) | Seo, Minhee
  • 이승혜(세종대학교 건축공학과 조교수, 공학박사, Dept. of Architectural Engineering, Sejong Univ.) | Lee, Seunghye
  • 백기열(포스코건설 책임연구원, 공학박사, POSCO E&C) | Baek, Kiyoul
  • 정진우(코스피(주) 이사, COSPi Co. Ltd) | Jeong, Jinwoo
  • 김선명(한국타이어 중앙연구소 차장, 공학박사, HANKOOK TIRE Co. Ltd) | Kim, Sun-Myung
  • 이재홍(세종대학교 건축공학과 교수, 공학박사, Dept. of Architectural Engineering, Sejong Univ.) | Lee, Jaehong 교신저자
