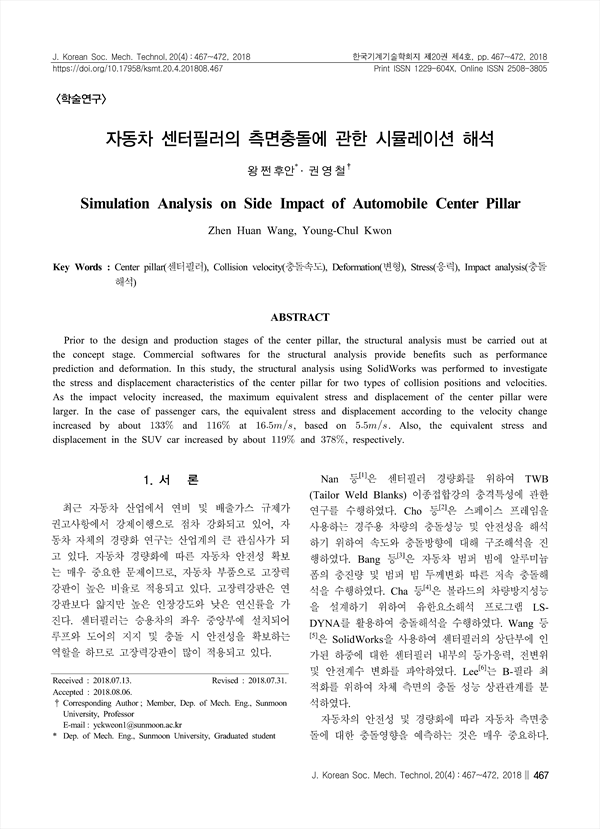

자동차 센터필러의 측면충돌에 관한 시뮬레이션 해석 KCI 등재

Simulation Analysis on Side Impact of Automobile Center Pillar

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/357575
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

Prior to the design and production stages of the center pillar, the structural analysis must be carried out at the concept stage. Commercial softwares for the structural analysis provide benefits such as performance prediction and deformation. In this study, the structural analysis using SolidWorks was performed to investigate the stress and displacement characteristics of the center pillar for two types of collision positions and velocities. As the impact velocity increased, the maximum equivalent stress and displacement of the center pillar were larger. In the case of passenger cars, the equivalent stress and displacement according to the velocity change increased by about 133% and 116% at 16.5m/s , based on 5.5m/s . Also, the equivalent stress and displacement in the SUV car increased by about 119% and 378%, respectively

목차
ABSTRACT
 1. 서 론
 2. 구조 및 형상 모델링 해석조건
  2.1 센터필러 구조
  2.2 형상 모델링 해석조건
 3. 전산해석 결과
  3.1 승용 자동차의 경우
  3.2 SUV 자동차 경우
 4. 결 론
 References
저자
  • 왕 쩐 후안(Dep. of Mech. Eng., Sunmoon University) | Zhen Huan Wang
  • 권영철(Dep. of Mech. Eng., Sunmoon University, Professor) | Young-Chul Kwon Corresponding Author
