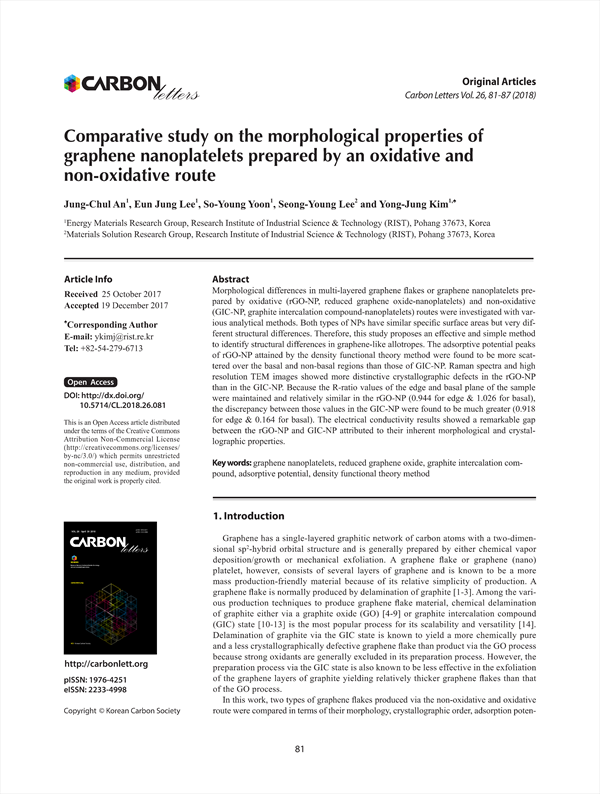

Morphological differences in multi-layered graphene flakes or graphene nanoplatelets prepared by oxidative (rGO-NP, reduced graphene oxide-nanoplatelets) and non-oxidative (GIC-NP, graphite intercalation compound-nanoplatelets) routes were investigated with various analytical methods. Both types of NPs have similar specific surface areas but very different structural differences. Therefore, this study proposes an effective and simple method to identify structural differences in graphene-like allotropes. The adsorptive potential peaks of rGO-NP attained by the density functional theory method were found to be more scattered over the basal and non-basal regions than those of GIC-NP. Raman spectra and high resolution TEM images showed more distinctive crystallographic defects in the rGO-NP than in the GIC-NP. Because the R-ratio values of the edge and basal plane of the sample were maintained and relatively similar in the rGO-NP (0.944 for edge & 1.026 for basal), the discrepancy between those values in the GIC-NP were found to be much greater (0.918 for edge & 0.164 for basal). The electrical conductivity results showed a remarkable gap between the rGO-NP and GIC-NP attributed to their inherent morphological and crystallographic properties.

Abstract
 1. Introduction
 2. Experimental
  2.1. Materials
  2.2. Sample preparation
  2.3. Characterization
 3. Results and Discussion
 4. Conclusions
 References

• Jung-Chul An(Energy Materials Research Group, Research Institute of Industrial Science & Technology (RIST))
• Eun Jung Lee(Energy Materials Research Group, Research Institute of Industrial Science & Technology (RIST))
• So-Young Yoon(Energy Materials Research Group, Research Institute of Industrial Science & Technology (RIST))
• Seong-Young Lee(Materials Solution Research Group, Research Institute of Industrial Science & Technology (RIST))
• Yong-Jung Kim(Energy Materials Research Group, Research Institute of Industrial Science & Technology (RIST))
