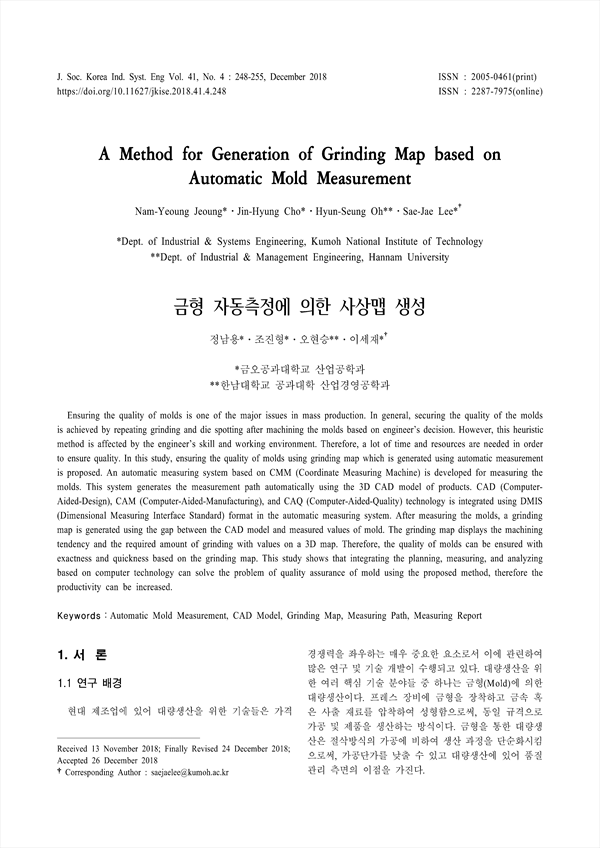

Ensuring the quality of molds is one of the major issues in mass production. In general, securing the quality of the molds is achieved by repeating grinding and die spotting after machining the molds based on engineer’s decision. However, this heuristic method is affected by the engineer’s skill and working environment. Therefore, a lot of time and resources are needed in order to ensure quality. In this study, ensuring the quality of molds using grinding map which is generated using automatic measurement is proposed. An automatic measuring system based on CMM (Coordinate Measuring Machine) is developed for measuring the molds. This system generates the measurement path automatically using the 3D CAD model of products. CAD (Computer- Aided-Design), CAM (Computer-Aided-Manufacturing), and CAQ (Computer-Aided-Quality) technology is integrated using DMIS (Dimensional Measuring Interface Standard) format in the automatic measuring system. After measuring the molds, a grinding map is generated using the gap between the CAD model and measured values of mold. The grinding map displays the machining tendency and the required amount of grinding with values on a 3D map. Therefore, the quality of molds can be ensured with exactness and quickness based on the grinding map. This study shows that integrating the planning, measuring, and analyzing based on computer technology can solve the problem of quality assurance of mold using the proposed method, therefore the productivity can be increased.

1. 서 론
  1.1 연구 배경
  1.2 연구 목적
  1.3 연구 방법
  1.4 기존 연구의 고찰 및 문헌 연구
  1.5 본 연구와 기존 연구와의 차이점
 2. 디지털 설계, 가공, 측정 통합 및 연동
 3. 금형 자동측정 및 사상맵을 이용한 금형 제작
  3.1 금형 제작 프로세스에서의 자동측정
  3.2 금형 자동측정 경로 생성
  3.3 금형 자동측정 및 검사 성적서 자동작성
  3.4 금형 사상 맵 작성
  3.5 사상 및 형합 수행
  3.6 검증
 4. 결 론
 References
