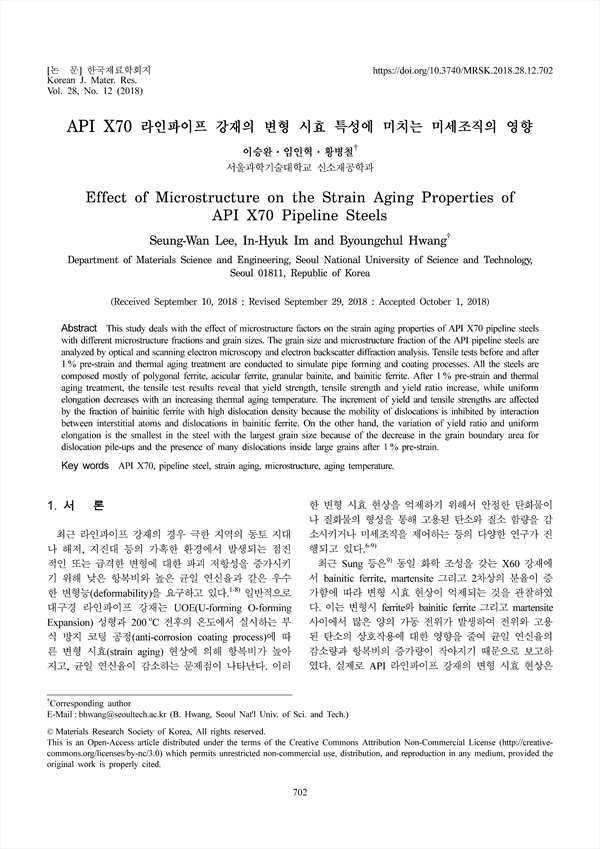

This study deals with the effect of microstructure factors on the strain aging properties of API X70 pipeline steels with different microstructure fractions and grain sizes. The grain size and microstructure fraction of the API pipeline steels are analyzed by optical and scanning electron microscopy and electron backscatter diffraction analysis. Tensile tests before and after 1% pre-strain and thermal aging treatment are conducted to simulate pipe forming and coating processes. All the steels are composed mostly of polygonal ferrite, acicular ferrite, granular bainite, and bainitic ferrite. After 1% pre-strain and thermal aging treatment, the tensile test results reveal that yield strength, tensile strength and yield ratio increase, while uniform elongation decreases with an increasing thermal aging temperature. The increment of yield and tensile strengths are affected by the fraction of bainitic ferrite with high dislocation density because the mobility of dislocations is inhibited by interaction between interstitial atoms and dislocations in bainitic ferrite. On the other hand, the variation of yield ratio and uniform elongation is the smallest in the steel with the largest grain size because of the decrease in the grain boundary area for dislocation pile-ups and the presence of many dislocations inside large grains after 1% pre-strain.

Abstract
 1. 서 론
 2. 실험 방법
 3. 결과 및 고
  3.1 미세조직과 인장 특성
  3.2 변형 시효에 따른 인장 특성 변화
 4. 결 론
 References

• 이승완(서울과학기술대학교 신소재공학과) | Seung-Wan Lee (Department of Materials Science and Engineering, Seoul National University of Science and Technology)
• 임인혁(서울과학기술대학교 신소재공학과) | In-Hyuk Im (Department of Materials Science and Engineering, Seoul National University of Science and Technology)
• 황병철(서울과학기술대학교 신소재공학과) | Byoungchul Hwang (Department of Materials Science and Engineering, Seoul National University of Science and Technology) Corresponding author
