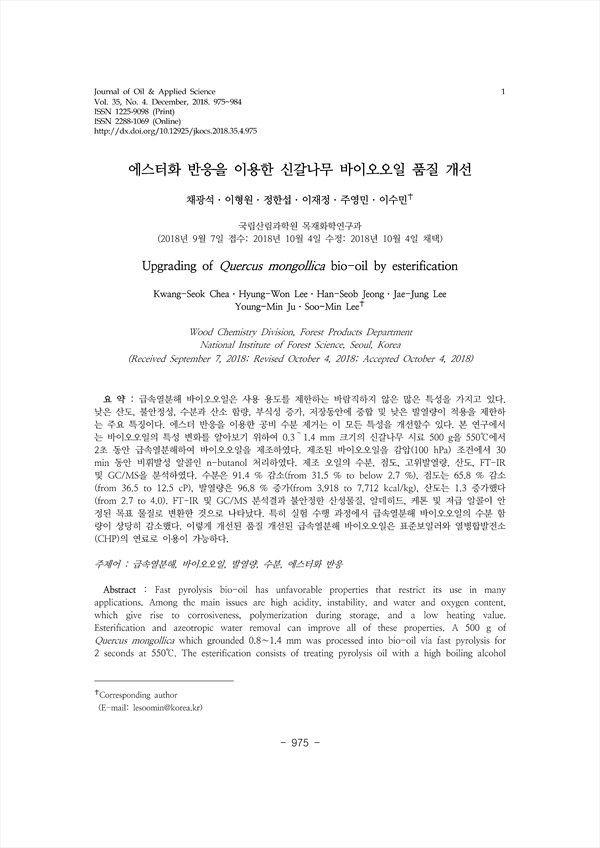

급속열분해 바이오오일은 사용 용도를 제한하는 바람직하지 않은 많은 특성을 가지고 있다. 낮은 산도, 불안정성, 수분과 산소 함량, 부식성 증가, 저장동안에 중합 및 낮은 발열량이 적용을 제한하는 주요 특징이다. 에스터 반응을 이용한 공비 수분 제거는 이 모든 특성을 개선할수 있다. 본 연구에서는 바이오오일의 특성 변화를 알아보기 위하여 0.3～1.4 mm 크기의 신갈나무 시료 500 g을 550℃에서 2초 동안 급속열분해하여 바이오오일을 제조하였다. 제조된 바이오오일을 감압(100 hPa) 조건에서 30 min 동안 비휘발성 알콜인 n-butanol 처리하였다. 제조 오일의 수분, 점도, 고위발열량, 산도, FT-IR 및 GC/MS을 분석하였다. 수분은 91.4 % 감소(from 31.5 % to below 2.7 %), 점도는 65.8 % 감소 (from 36.5 to 12.5 cP), 발열량은 96.8 % 증가(from 3,918 to 7,712 kcal/kg), 산도는 1.3 증가했다 (from 2.7 to 4.0). FT-IR 및 GC/MS 분석결과 불안정한 산성물질, 알데히드, 케톤 및 저급 알콜이 안정된 목표 물질로 변환한 것으로 나타났다. 특히 실험 수행 과정에서 급속열분해 바이오오일의 수분 함량이 상당히 감소했다. 이렇게 개선된 품질 개선된 급속열분해 바이오오일은 표준보일러와 열병합발전소 (CHP)의 연료로 이용이 가능하다.

Fast pyrolysis bio-oil has unfavorable properties that restrict its use in many applications. Among the main issues are high acidity, instability, and water and oxygen content, which give rise to corrosiveness, polymerization during storage, and a low heating value. Esterification and azeotropic water removal can improve all of these properties. A 500 g of Quercus mongollica which grounded 0.8∼1.4 mm was processed into bio-oil via fast pyrolysis for 2 seconds at 550℃. The esterification consists of treating pyrolysis oil with a high boiling alcohol like n-butanol at 70℃ under reduced pressure (100 hPa). All products are analyzed for water mass fraction, viscosity, higher heating value, pH, FT-IR and GC/MS. The water mass fraction can be reduced by 91.4 % (from 31.5 % to below 2.7 %), the viscosity by 65.8 % (from 36.5 to 12.5 cP) and the higher heating value can be increased by 96.8 % (from 3,918 to 7,712 kcal/kg), the pH by 1.3 (from 2.7 to 4.0). FT-IR and GC/MS analysis indicated that labile acids, aldehydes, ketones and lower alcohols were transformed to stable target products. Using this approach, the water content of the pyrolysis oil is reduced significantly. These improvements should allow the utilization of upgraded pyrolysis liquids in standard boilers and as fuel in CHP (Combined heat and power) plants.

요약
Abstract
 1. 서론
 2. 재료 및 방법
 3. 결과 및 고찰
 4. 결론
 References

• 채광석(국립산림과학원 목재화학연구과) | Kwang-Seok Chea (Wood Chemistry Division, Forest Products Department National Institute of Forest Science)
• 이형원(국립산림과학원 목재화학연구과) | Hyung-Won Lee (Wood Chemistry Division, Forest Products Department National Institute of Forest Science)
• 정한섭(국립산림과학원 목재화학연구과) | Han-Seob Jeong (Wood Chemistry Division, Forest Products Department National Institute of Forest Science)
• 이재정(국립산림과학원 목재화학연구과) | Jae-Jung Lee (Wood Chemistry Division, Forest Products Department National Institute of Forest Science)
• 주영민(국립산림과학원 목재화학연구과) | Young-Min Ju (Wood Chemistry Division, Forest Products Department National Institute of Forest Science)
• 이수민(국립산림과학원 목재화학연구과) | Soo-Min Lee (Wood Chemistry Division, Forest Products Department National Institute of Forest Science) Corresponding author
