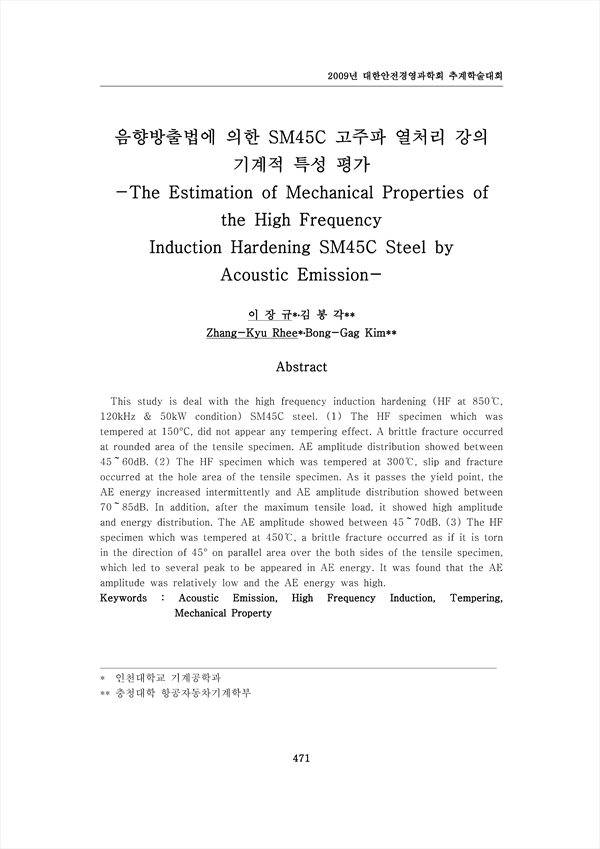

This study is deal with the high frequency induction hardening (HF at 850℃, 120kHz & 50kW condition) SM45C steel. (1) The HF specimen which was tempered at 150℃, did not appear any tempering effect. A brittle fracture occurred at rounded area of the tensile specimen. AE amplitude distribution showed between 45~60dB. (2) The HF specimen which was tempered at 300℃, slip and fracture occurred at the hole area of the tensile specimen. As it passes the yield point, the AE energy increased intermittently and AE amplitude distribution showed between 70~85dB. In addition, after the maximum tensile load, it showed high amplitude and energy distribution. The AE amplitude showed between 45~70dB. (3) The HF specimen which was tempered at 450℃, a brittle fracture occurred as if it is torn in the direction of 45℃ on parallel area over the both sides of the tensile specimen, which led to several peak to be appeared in AE energy. It was found that the AE amplitude was relatively low and the AE energy was high.
1. 서론
2. 관련 이론
3. 실험 재료 및 방법
3.1 실험재료 및 시험편
3.2 실험방법
4. 실험 결과 및 고찰
4.1 경도시험
4.2 인장시험과 파단면
4.3 AE시험
5. 결론
6. 참고문헌
