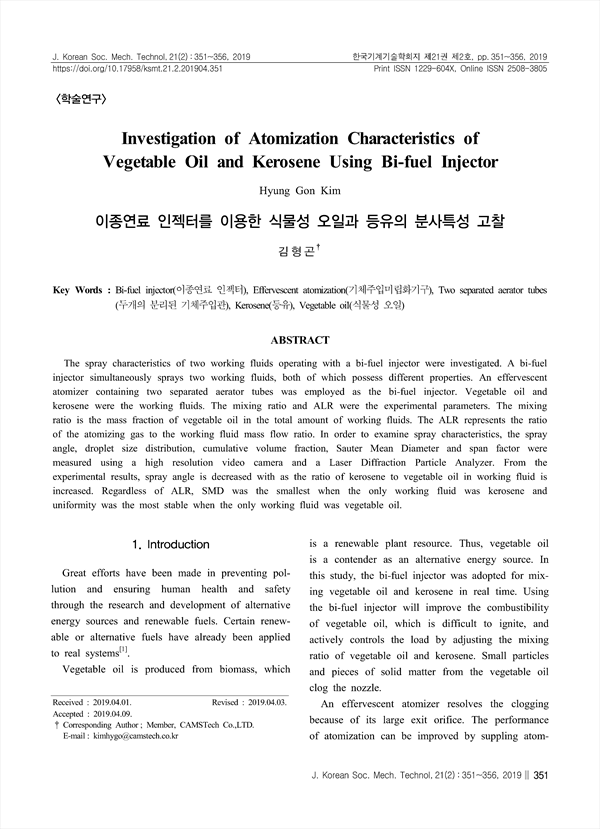

The spray characteristics of two working fluids operating with a bi-fuel injector were investigated. A bi-fuel injector simultaneously sprays two working fluids, both of which possess different properties. An effervescent atomizer containing two separated aerator tubes was employed as the bi-fuel injector. Vegetable oil and kerosene were the working fluids. The mixing ratio and ALR were the experimental parameters. The mixing ratio is the mass fraction of vegetable oil in the total amount of working fluids. The ALR represents the ratio of the atomizing gas to the working fluid mass flow ratio. In order to examine spray characteristics, the spray angle, droplet size distribution, cumulative volume fraction, Sauter Mean Diameter and span factor were measured using a high resolution video camera and a Laser Diffraction Particle Analyzer. From the experimental results, spray angle is decreased with as the ratio of kerosene to vegetable oil in working fluid is increased. Regardless of ALR, SMD was the smallest when the only working fluid was kerosene and uniformity was the most stable when the only working fluid was vegetable oil.

ABSTRACT
1. Introduction
2. Experimental Apparatus and Methods
3. Results and Discussion
    3.1 Spray angle
    3.2 Droplet size distribution
    3.3 SMD
    3.4 Span factor
4. Conclusion
References

• Hyung Gon Kim | 김 형 곤 Corresponding Author
