논문 상세보기

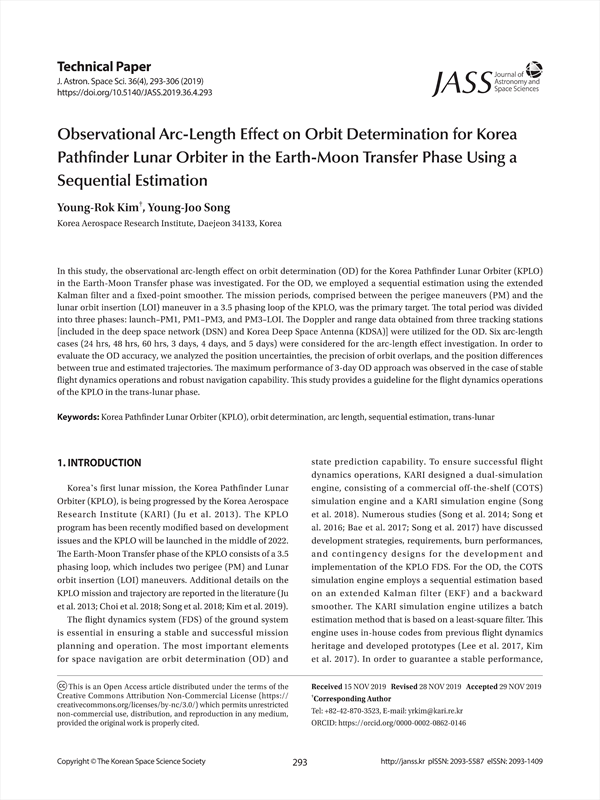

Observational Arc-Length Effect on Orbit Determination for Korea Pathfinder Lunar Orbiter in the Earth-Moon Transfer Phase Using a Sequential Estimation KCI 등재 SCOPUS

  • 언어ENG
  • URLhttps://db.koreascholar.com/Article/Detail/385445
서비스가 종료되어 열람이 제한될 수 있습니다.
한국우주과학회 (The Korean Space Science Society)
초록

In this study, the observational arc-length effect on orbit determination (OD) for the Korea Pathfinder Lunar Orbiter (KPLO) in the Earth-Moon Transfer phase was investigated. For the OD, we employed a sequential estimation using the extended Kalman filter and a fixed-point smoother. The mission periods, comprised between the perigee maneuvers (PM) and the lunar orbit insertion (LOI) maneuver in a 3.5 phasing loop of the KPLO, was the primary target. The total period was divided into three phases: launch–PM1, PM1–PM3, and PM3–LOI. The Doppler and range data obtained from three tracking stations [included in the deep space network (DSN) and Korea Deep Space Antenna (KDSA)] were utilized for the OD. Six arc-length cases (24 hrs, 48 hrs, 60 hrs, 3 days, 4 days, and 5 days) were considered for the arc-length effect investigation. In order to evaluate the OD accuracy, we analyzed the position uncertainties, the precision of orbit overlaps, and the position differences between true and estimated trajectories. The maximum performance of 3-day OD approach was observed in the case of stable flight dynamics operations and robust navigation capability. This study provides a guideline for the flight dynamics operations of the KPLO in the trans-lunar phase.

목차
1. INTRODUCTION
2. MEASUREMENT SIMULATION
3. ORBIT DETERMINATION
4. RESULTS
    4.1 Launch–PM1 Phase (December 26, 2020 at 08:00:00–January 3, 2021 at 05:25:10)
    4.2 PM1–PM3 Phase (January 3, 2021 at 05:25:10–January19, 2021 at 17:10:15)
    4.3 PM3–LOI Phase (January 19, 2021 at 17:10:15–January24, 2021 at 16:56:52)
5. CONCLUSIONS
REFERENCES
저자
  • Young-Rok Kim(Korea Aerospace Research Institute) Corresponding Author
  • Young-Joo Song(Korea Aerospace Research Institute)
