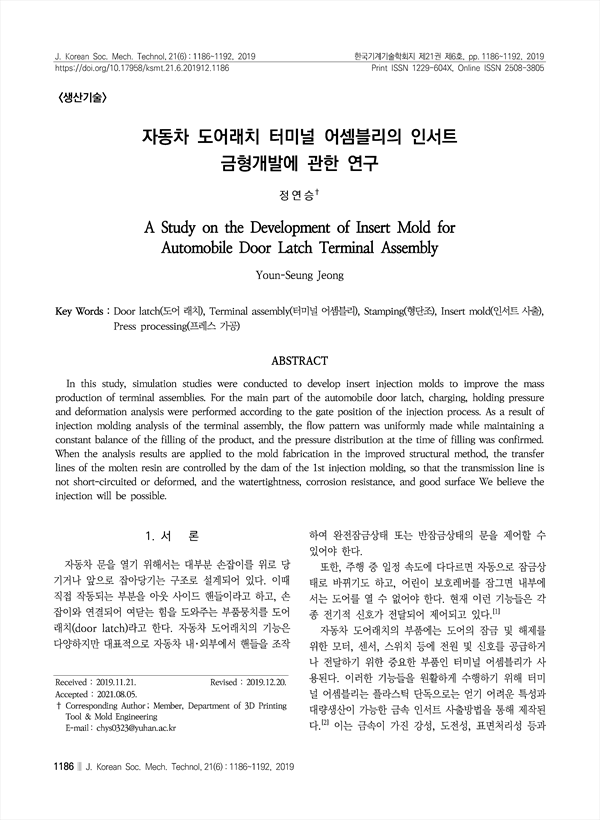

자동차 도어래치 터미널 어셈블리의 인서트 금형개발에 관한 연구 KCI 등재

A Study on the Development of Insert Mold for Automobile Door Latch Terminal Assembly

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/387326
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

In this study, simulation studies were conducted to develop insert injection molds to improve the mass production of terminal assemblies. For the main part of the automobile door latch, charging, holding pressure and deformation analysis were performed according to the gate position of the injection process. As a result of injection molding analysis of the terminal assembly, the flow pattern was uniformly made while maintaining a constant balance of the filling of the product, and the pressure distribution at the time of filling was confirmed. When the analysis results are applied to the mold fabrication in the improved structural method, the transfer lines of the molten resin are controlled by the dam of the 1st injection molding, so that the transmission line is not short-circuited or deformed, and the watertightness, corrosion resistance, and good surface We believe the injection will be possible.

목차
ABSTRACT
1. 서 론
2. 터미널 어셈블리 모델 생성
    2.1 터미널 어셈블리의 구조
    2.2 터미널 어셈블리의 문제점
3. 문제점 발생에 대한 대책
    3.1 개선방법
    3.2 개선된 터미널 어셈블리 개발
    3.3 사출성형 해석
4. 결 론
References
저자
  • 정연승(Department of 3D Printing Tool & Mold Engineering) | Youn-Seung Jeong Corresponding Author
