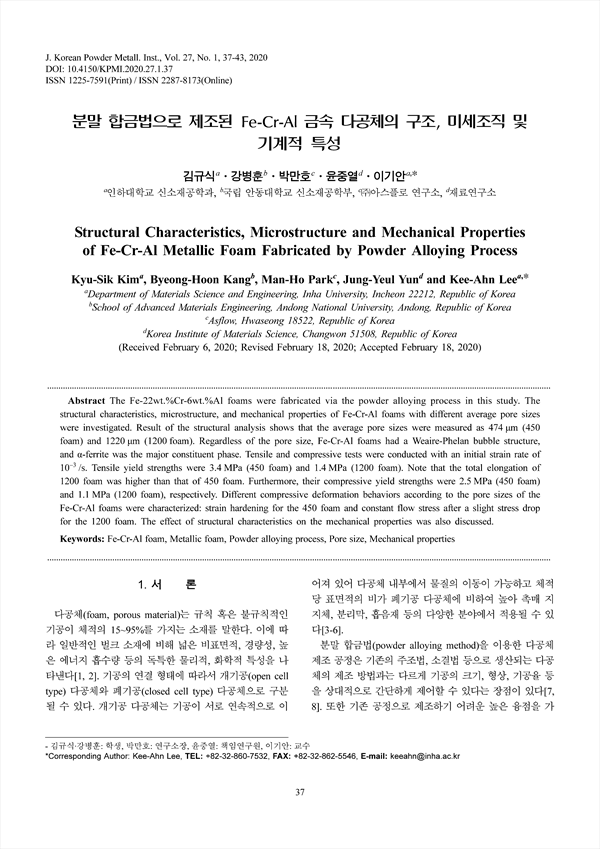

The Fe-22wt.%Cr-6wt.%Al foams were fabricated via the powder alloying process in this study. The structural characteristics, microstructure, and mechanical properties of Fe-Cr-Al foams with different average pore sizes were investigated. Result of the structural analysis shows that the average pore sizes were measured as 474 μm (450 foam) and 1220 μm (1200 foam). Regardless of the pore size, Fe-Cr-Al foams had a Weaire-Phelan bubble structure, and α-ferrite was the major constituent phase. Tensile and compressive tests were conducted with an initial strain rate of 10−3 /s. Tensile yield strengths were 3.4 MPa (450 foam) and 1.4 MPa (1200 foam). Note that the total elongation of 1200 foam was higher than that of 450 foam. Furthermore, their compressive yield strengths were 2.5 MPa (450 foam) and 1.1 MPa (1200 foam), respectively. Different compressive deformation behaviors according to the pore sizes of the Fe-Cr-Al foams were characterized: strain hardening for the 450 foam and constant flow stress after a slight stress drop for the 1200 foam. The effect of structural characteristics on the mechanical properties was also discussed.

Abstract
1. 서 론
2. 실험 방법
3. 실험 결과 및 고찰
4. 결 론
References

• 김규식(인하대학교 신소재공학과) | Kyu-Sik Kim (Department of Materials Science and Engineering, Inha University)
• 강병훈(국립 안동대학교 신소재공학부) | Byeong-Hoon Kang (School of Advanced Materials Engineering, Andong National University)
• 박만호(㈜아스플로 연구소) | Man-Ho Park (Asflow)
• 윤중열(재료연구소) | Jung-Yeul Yun (Korea Institute of Materials Science)
• 이기안(인하대학교 신소재공학과) | Kee-Ahn Lee (Department of Materials Science and Engineering, Inha University) Corresponding Author
