Boron-doped amorphous carbon (BDAC) thin films with a regular oxygen reduction reaction (ORR) catalytic activity were synthesized in a hot filament chemical vapor deposition device using a mixture of CH4 and H2 as a gas source and B2O3 as a boron source and then oxidized in air at 380–470 °C for 15–75 min. Scanning electron microscope, transmission electron microscope, Raman spectroscopy, X-ray photoelectron spectroscopy, and electrochemical tests were used to characterize the physical and electrochemical properties of the BDAC catalysts. It was concluded that the BDAC catalyst oxidized at 450 °C for 45 min showed the best ORR catalytic activity in alkaline medium. The oxygen reduction potential and the transfer electron number n, respectively, are − 0.286 V versus Ag/AgCl and 3.24 from the rotating disk electrode experiments. The treated carbon film has better methanol resistance and stability than the commercial Pt/C catalyst.

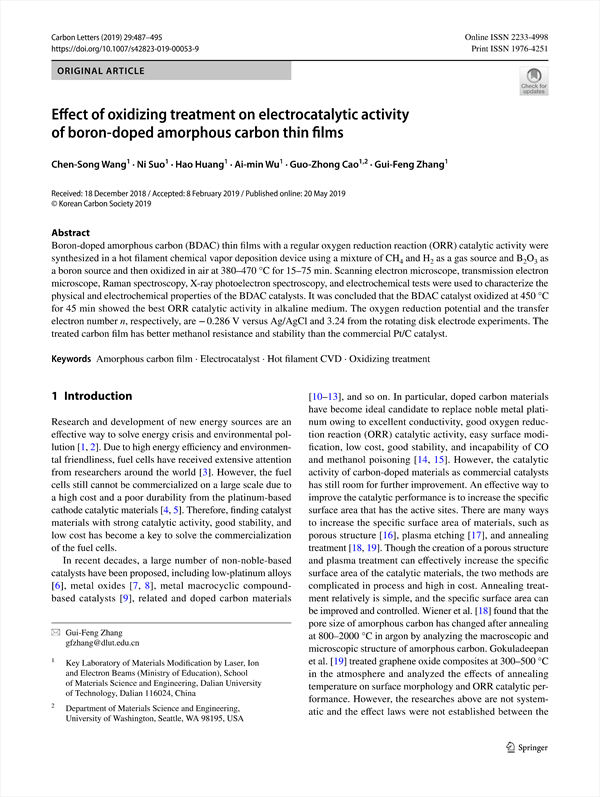

Effect of oxidizing treatment on electrocatalytic activity of boron-doped amorphous carbon thin films
    Abstract
    1 Introduction
    2 Experimental
        2.1 Preparation of BDAC films
        2.2 Characterization
    3 Results and discussion
        3.1 Physical characterization of the catalysts
        3.2 Electrochemical characterization of carbon catalysts
    4 Conclusions
    Acknowledgements
    References

• Chen‑Song Wang(Key Laboratory of Materials Modification by Laser, Ion and Electron Beams (Ministry of Education), School of Materials Science and Engineering, Dalian University of Technology)
• Ni Suo(Key Laboratory of Materials Modification by Laser, Ion and Electron Beams (Ministry of Education), School of Materials Science and Engineering, Dalian University of Technology)
• Hao Huang(Key Laboratory of Materials Modification by Laser, Ion and Electron Beams (Ministry of Education), School of Materials Science and Engineering, Dalian University of Technology)
• Ai‑min Wu(Key Laboratory of Materials Modification by Laser, Ion and Electron Beams (Ministry of Education), School of Materials Science and Engineering, Dalian University of Technology)
• Guo‑Zhong Cao(Key Laboratory of Materials Modification by Laser, Ion and Electron Beams (Ministry of Education), School of Materials Science and Engineering, Dalian University of Technology/Department of Materials Science and Engineering, University of Washington)
• Gui‑Feng Zhang(Key Laboratory of Materials Modification by Laser, Ion and Electron Beams (Ministry of Education), School of Materials Science and Engineering, Dalian University of Technology)
