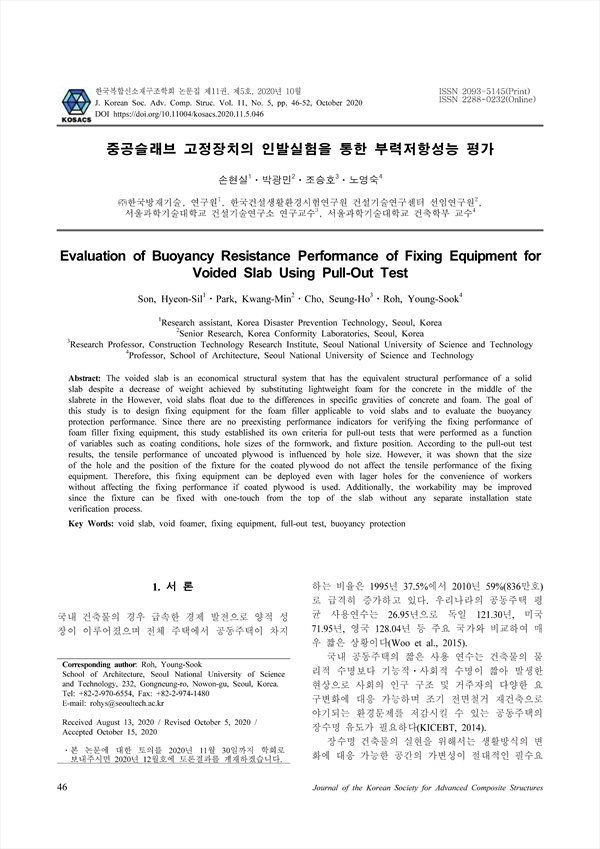

중공슬래브 고정장치의 인발실험을 통한 부력저항성능 평가 KCI 등재

Evaluation of Buoyancy Resistance Performance of Fixing Equipment for Voided Slab Using Pull-Out Test

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/401844
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
복합신소재구조학회 논문집 (Journal of the Korean Society for Advanced Composite Structures)
한국복합신소재구조학회 (Korean Society for Advanced Composite Structures)
초록

중공슬래브 시스템은 슬래브 중앙부의 콘크리트를 경량의 중공재로 대체하여 중량은 감소시키면서 동등한 수준의 구조성능을 지니는 경제적인 시스템이나 콘크리트 타설 시 비중의 차이로 중공재가 부상하게 되는 문제점이 발생한다. 이에 본 연구에서는 중공슬래브 공법에 적용 가능한 경량성형재 고정장치를 고안하고 부력저항성능을 평가하고자 하였으며, 고정성능 평가를 위해 정해진 실험방법이 존재하지 않으므로 이를 검증하기 위해 인발실험장치를 제작하였다. 시공 시 본 장치를 설치하는 과정에서 발생 가능한 변수를 기준으로 실험을 수행하고자 하였고 이에 합판의 상태 및 고정 위치에 따라 변화되는 고정성능을 파악하고자 하였다. 인발 실험 결과 일반합판과 비교하여 코팅합판의 경우 구멍의 크기가 중공재 고정장치의 인장성능에 큰 영향을 미치지 않는 것으로 나타나 작업자의 편의 및 내력 확보의 안전성을 위해 코팅합판을 사용하는 것이 유리한 것으로 판단된다. 또한 고정 위치와 무관하게 동일한 수준의 고정성능을 지니는 것으로 보여져 설치 상태에 대한 별도의 확인 과정 없이 슬래브 상부에서 원터치 방식으로 고정 가능하므로 시공성이 향상된 것으로 사료된다.

The voided slab is an economical structural system that has the equivalent structural performance of a solid slab despite a decrease of weight achieved by substituting lightweight foam for the concrete in the middle of the slabrete in the However, void slabs float due to the differences in specific gravities of concrete and foam. The goal of this study is to design fixing equipment for the foam filler applicable to void slabs and to evaluate the buoyancy protection performance. Since there are no preexisting performance indicators for verifying the fixing performance of foam filler fixing equipment, this study established its own criteria for pull-out tests that were performed as a function of variables such as coating conditions, hole sizes of the formwork, and fixture position. According to the pull-out test results, the tensile performance of uncoated plywood is influenced by hole size. However, it was shown that the size of the hole and the position of the fixture for the coated plywood do not affect the tensile performance of the fixing equipment. Therefore, this fixing equipment can be deployed even with lager holes for the convenience of workers without affecting the fixing performance if coated plywood is used. Additionally, the workability may be improved since the fixture can be fixed with one-touch from the top of the slab without any separate installation state verification process.

목차
Abstract
1. 서 론
2. 중공재 고정장치 및 인발실험장치
    2.1 중공재 고정장치
    2.2 인발실험장치 제작
3. 고정성능 실험
    3.1 주요 변수 설정
    3.2 가력 및 계측 계획
    3.3 실험 결과
4. 고정성능 평가
    4.1 합판의 상태에 따른 영향
    4.2 고정 위치에 따른 영향
    4.3 부력저항성능 평가
5. 결 론
REFERENCES
국문초록
저자
  • 손현실(㈜한국방재기술) | Son Hyeon-Sil (Korea Disaster Prevention Technology)
  • 박광민(한국건설생활환경시험연구원 건설기술연구센터) | Park Kwang-Min (Korea Conformity Laboratories)
  • 조승호(서울과학기술대학교 건설기술연구소) | Cho Seung-Ho (Construction Technology Research Institute, Seoul National University of Science and Technology)
  • 노영숙(서울과학기술대학교 건축학부) | Roh Young-Sook (School of Architecture, Seoul National University of Science and Technology) Corresponding author
