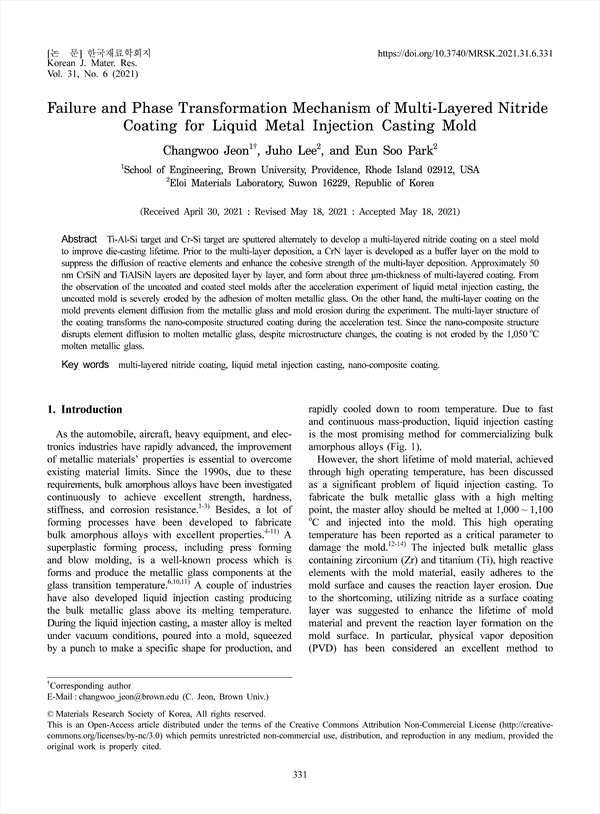

Ti-Al-Si target and Cr-Si target are sputtered alternately to develop a multi-layered nitride coating on a steel mold to improve die-casting lifetime. Prior to the multi-layer deposition, a CrN layer is developed as a buffer layer on the mold to suppress the diffusion of reactive elements and enhance the cohesive strength of the multi-layer deposition. Approximately 50 nm CrSiN and TiAlSiN layers are deposited layer by layer, and form about three μm-thickness of multi-layered coating. From the observation of the uncoated and coated steel molds after the acceleration experiment of liquid metal injection casting, the uncoated mold is severely eroded by the adhesion of molten metallic glass. On the other hand, the multi-layer coating on the mold prevents element diffusion from the metallic glass and mold erosion during the experiment. The multi-layer structure of the coating transforms the nano-composite structured coating during the acceleration test. Since the nano-composite structure disrupts element diffusion to molten metallic glass, despite microstructure changes, the coating is not eroded by the 1,050 oC molten metallic glass.

Abstract
1. Introduction
2. Experimental Procedure
    2.1 Multi-layered Coating
    2.2 Injection Casting Acceleration Experiment
3. Result and Discussion
    3.1 Microstructure of multi-layered coating.
    3.2 Acceleration test
4. Conclusion
References

• Changwoo Jeon(School of Engineering, Brown University) Corresponding author
• Juho Lee(Eloi Materials Laboratory)
• Eun Soo Park(Eloi Materials Laboratory)
