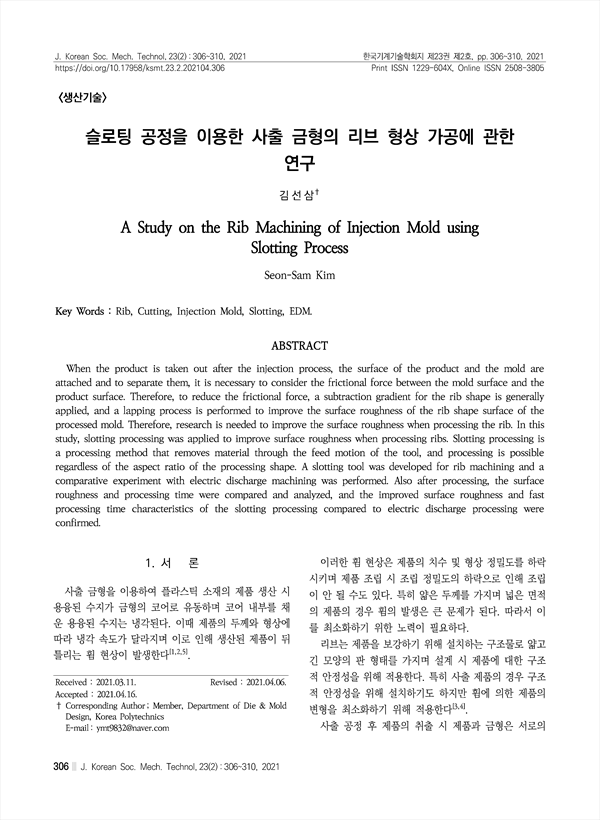

When the product is taken out after the injection process, the surface of the product and the mold are attached and to separate them, it is necessary to consider the frictional force between the mold surface and the product surface. Therefore, to reduce the frictional force, a subtraction gradient for the rib shape is generally applied, and a lapping process is performed to improve the surface roughness of the rib shape surface of the processed mold. Therefore, research is needed to improve the surface roughness when processing the rib. In this study, slotting processing was applied to improve surface roughness when processing ribs. Slotting processing is a processing method that removes material through the feed motion of the tool, and processing is possible regardless of the aspect ratio of the processing shape. A slotting tool was developed for rib machining and a comparative experiment with electric discharge machining was performed. Also after processing, the surface roughness and processing time were compared and analyzed, and the improved surface roughness and fast processing time characteristics of the slotting processing compared to electric discharge processing were confirmed.

• 김선삼(한국폴리텍 II 대학 인천캠퍼스) Corresponding Author
