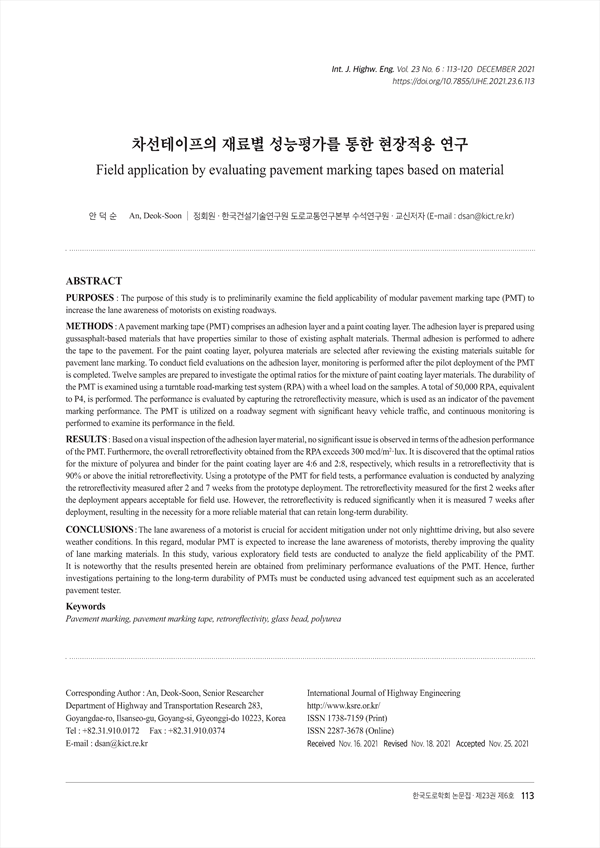

PURPOSES : The purpose of this study is to preliminarily examine the field applicability of modular pavement marking tape (PMT) to increase the lane awareness of motorists on existing roadways.
METHODS : A pavement marking tape (PMT) comprises an adhesion layer and a paint coating layer. The adhesion layer is prepared using gussasphalt-based materials that have properties similar to those of existing asphalt materials. Thermal adhesion is performed to adhere the tape to the pavement. For the paint coating layer, polyurea materials are selected after reviewing the existing materials suitable for pavement lane marking. To conduct field evaluations on the adhesion layer, monitoring is performed after the pilot deployment of the PMT is completed. Twelve samples are prepared to investigate the optimal ratios for the mixture of paint coating layer materials. The durability of the PMT is examined using a turntable road-marking test system (RPA) with a wheel load on the samples. A total of 50,000 RPA, equivalent to P4, is performed. The performance is evaluated by capturing the retroreflectivity measure, which is used as an indicator of the pavement marking performance. The PMT is utilized on a roadway segment with significant heavy vehicle traffic, and continuous monitoring is performed to examine its performance in the field.
RESULTS : Based on a visual inspection of the adhesion layer material, no significant issue is observed in terms of the adhesion performance of the PMT. Furthermore, the overall retroreflectivity obtained from the RPA exceeds 300 mcd/m2·lux. It is discovered that the optimal ratios for the mixture of polyurea and binder for the paint coating layer are 4:6 and 2:8, respectively, which results in a retroreflectivity that is 90% or above the initial retroreflectivity. Using a prototype of the PMT for field tests, a performance evaluation is conducted by analyzing the retroreflectivity measured after 2 and 7 weeks from the prototype deployment. The retroreflectivity measured for the first 2 weeks after the deployment appears acceptable for field use. However, the retroreflectivity is reduced significantly when it is measured 7 weeks after deployment, resulting in the necessity for a more reliable material that can retain long-term durability.
CONCLUSIONS : The lane awareness of a motorist is crucial for accident mitigation under not only nighttime driving, but also severe weather conditions. In this regard, modular PMT is expected to increase the lane awareness of motorists, thereby improving the quality of lane marking materials. In this study, various exploratory field tests are conducted to analyze the field applicability of the PMT. It is noteworthy that the results presented herein are obtained from preliminary performance evaluations of the PMT. Hence, further investigations pertaining to the long-term durability of PMTs must be conducted using advanced test equipment such as an accelerated pavement tester.

ABSTRACT
1. 서론
2. 문헌조사
    2.1. 차선 재료의 분류
    2.2. 수용성 차선도료
    2.3. 열가소성 차선도료
    2.4. 열경화성 차선도료
    2.5. 도장층 재료 선정
3. 접착층 재료 검토
    3.1. 재료 검토
    3.2. 접착층 재료의 현장 검토
4. 도장층 재료 실험
    4.1. 시편 제작
    4.2. 내마모도 시험
5. 현장 시험적용
6. 결론
REFERENCES

• 안덕순(한국건설기술연구원 도로교통연구본부) | An Deok-Soon (Department of Highway and Transportation Research) 교신저자
