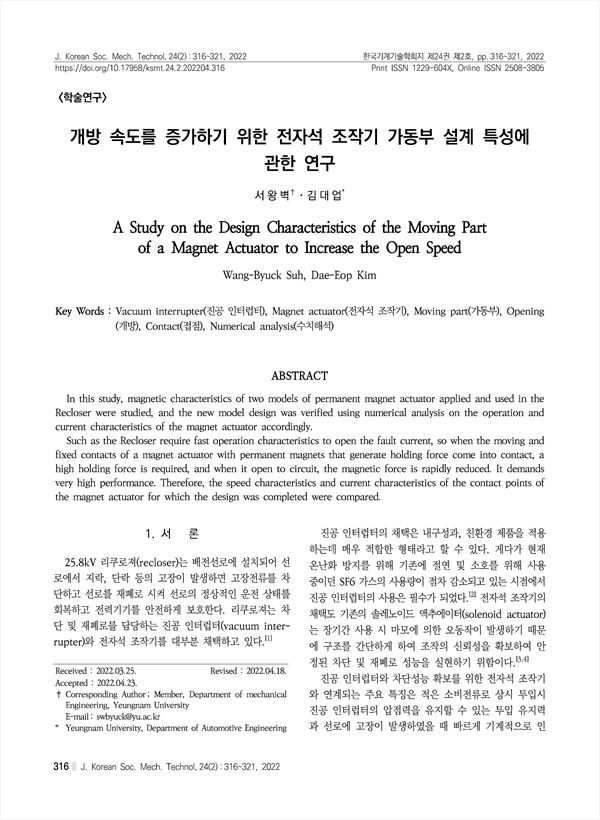

In this study, magnetic characteristics of two models of permanent magnet actuator applied and used in the Recloser were studied, and the new model design was verified using numerical analysis on the operation and current characteristics of the magnet actuator accordingly. Such as the Recloser require fast operation characteristics to open the fault current, so when the moving and fixed contacts of a magnet actuator with permanent magnets that generate holding force come into contact, a high holding force is required, and when it open to circuit, the magnetic force is rapidly reduced. It demands very high performance. Therefore, the speed characteristics and current characteristics of the contact points of the magnet actuator for which the design was completed were compared.

• 서왕벽(영남대학교) | Suh Wang Byuck Corresponding author
• 김대업(영남대학교) | Dae-Eop KIM
